Location:
Bensenville, IL
Manufacturer:
Northland
Size:
2"

Specifications

Condition:
used
Stock number:
45904001
Bottom:
Dished Bottom
Gallons:
150
Mounted:
Mounted on 4 Legs
Opening:
16" manway with cover, (3) 2", 3/4" . 2" SIDE
Diameter:
36"
Mixer type:
4 Blade Turbine
Presfulvac:
50
Year built:
1989
Agitator hp:
3/4
Outlet size:
2"
Agitator rpm:
2500
Agitator type:
Fixed Mount
Opening cover:
Yes
Straight side:
32"
Agitator cycle:
60
Agitator phase:
1
Top head style:
Dished Head
Outlet location:
Bottom
Agitator voltage:
120 Volt
Agitator location:
Side Bottom
Internal pressure:
50 FVAC
Overal dimensions:
46 x 46" x 78"T
National board no.:
764
Internal temperature:
300 degrees F
Horizontal or vertical:
Vertical
Material of construction:
316L Stainless Steel
Subcategory:
0 to 499 gallons
Subcategory 2:
Stainless steel tanks

Description

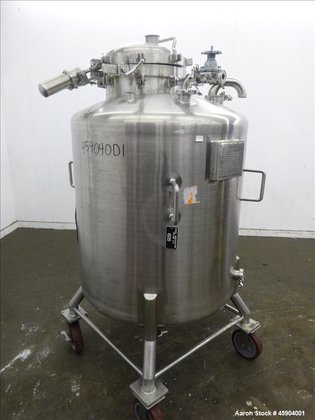

45904001 Used- Northland Stainless Pressure Tank, Approximate 150 Gallon, 316L Stainless Steel, Vertical. 35-5/8" Diameter x 32" straight side. Dished top and bottom. Internal rating Full Vacuum 50 psi at 300 degrees F. Openings top 16" man way with cover, tri-clamp (3) 2", 1", 1-1/2" side, 2" center bottom outlet. Bottom Driven Agitator driven by a 3/4 hp, 1/50-60Hz/90 volt, 2500 rpm with Dayton DC speed controller. Mounted on (4) stainless steel legs with wheels. National Board# 764. Serial# 884753-2, built 1989.
