Location:
Bensenville, IL
Manufacturer:
Fritz Meili
Size:
11.7"

Specifications

Condition:
used
Stock number:
44145
Gallons:
2600
Mounted:
Mounted on 4 Legs
Opening:
Top opening (3) 11.7" diameter (300 mm), (2) 23.4" diameter (600 mm)
Diameter:
93.6"
Presfulvac:
81 psi
Outlet size:
11.7"
Opening cover:
No
Straight side:
109.2"
Outlet location:
Bottom
Internal pressure:
81 psi
Horizontal or vertical:
Vertical
Material of construction:
Stainless Steel
Subcategory 2:
Stainless steel tanks

Description

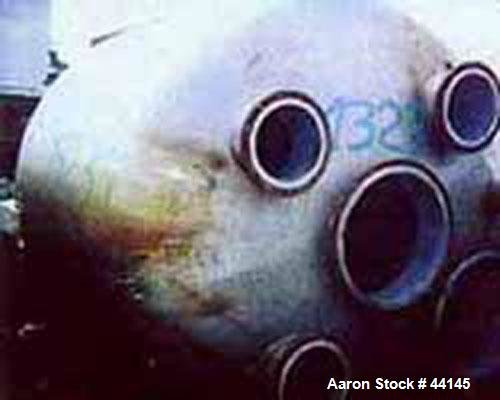

44145 Used- Meilibex Pressure Tank, 2600 Gallon (10,000 Liter), Stainless Steel, Vertical. 93.6" Diameter x 109.2" straight side (2400 mm dia x 2800 mm st side). Rated to 81 psi (5.4 bar). Top opening (3) 11.7" diameter (300 mm), (2) 23.4" diameter (600 mm) without covers. Center bottom outlet 11.7" diameter (300 mm) without outlet valve. (1) 11.7" Diameter (300 mm) cleaning opening without cover. (4) 31" Profile legs.
