Location:
Bensenville, IL
Manufacturer:
Lightnin tanks
Size:
2"

Specifications

Condition:
used
Serial number:
87/309324
Stock number:
46075141
Bottom:
Dished Bottom
Gallons:
500
Mounted:
Mounted on 4 Legs
Opening:
18" man way with cover, (1) 8" for agitator, (1) 4", (3) 2", (1) 1"
Diameter:
48"
Mixer type:
3 Blade Turbine
Agitator hp:
.65
Outlet size:
2"
Agitator rpm:
1140
Agitator type:
Top Entering
Straight side:
60"
Agitator cycle:
60
Agitator model:
XJCA-100
Agitator phase:
3
Top head style:
Dished Head
Outlet location:
Bottom
Agitator voltage:
208-230/460 Volt
Agitator location:
Top Offset
Overal dimensions:
107"L x 58"W x 52"T
Agitator manufacturer:
Lightnin
Horizontal or vertical:
Vertical
Material of construction:
304 Stainless Steel
Subcategory:
500 to 999 gallons
Subcategory 2:
Stainless steel tanks

Description

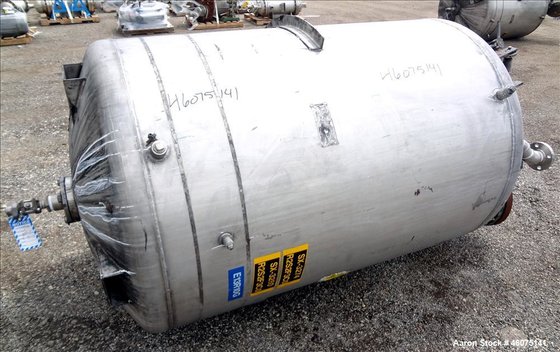

46075141 Used- Tank, 500 Gallon, 304 Stainless Steel, Vertical. Approximate 48" diameter x 60" straight side, dished top & bottom. Off center top entering Lightnin agitator, model XJCA-100, serial# 87/309324. Shaft and 3 blade turbine, driven by .65hp, 3/60/208-230/460 volt, 1140 rpm motor with mechanical seal. Openings top: 18" man way with cover, (1) 8" for agitator, (1) 4", (3) 2", (1) 1". 2" Center bottom outlet. Mounted on (4) legs.
