Location:
Bensenville, IL
Manufacturer:
H Pontifex and Sons
Size:
3"

Specifications

Condition:
used
Stock number:
81737
Gallons:
900
Mounted:
Side Lug Mounted
Opening:
Openings: top (4) 2", 1-1/2", 6"
Diameter:
60"
Presfulvac:
7 psi
Outlet size:
3"
Agitator rpm:
970
Straight side:
68"
Agitator model:
X200
Top head style:
Flat Top
Outlet location:
Bottom
Internal pressure:
7 psi
Internal temperature:
233 degrees F
Horizontal or vertical:
Vertical
Material of construction:
304 Stainless Steel
Subcategory:
500 to 999 gallons
Subcategory 2:
Stainless steel tanks

Description

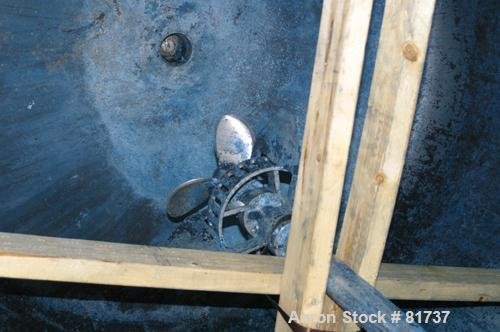

81737 Used- H. Pontifex and Sons Jacketed Mix Tank, 900 gallon, 304 stainless steel, vertical. 60" diameter x 68" straight side. Flat bolt-on top with 1/3 hinged covers, dished carbon steel jacketed bottom head, rated 7 psi at 233 degrees F. Carbon steel agitator bridge with a Rotostat high shear emulsifier, model X200. 2" diameter shaft with a 4 blade rotor and a 3 blade prop, driven by an 11 kw, 3/50/380/ 660 volt, 970 rpm motor. Openings: top (4) 2", 1-1/2", 6"; 3" center bottom outlet. 4 side lug mounts.
