Top Seller

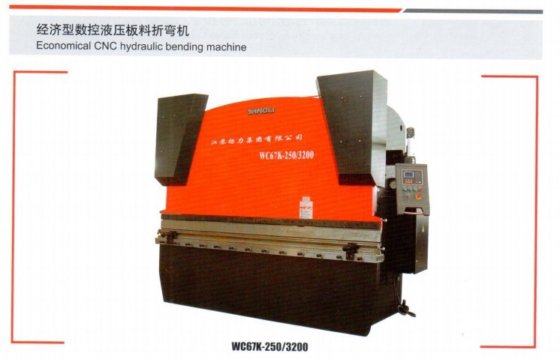

137 Ton, YANGLI, #WC67K-125x3200, 126"OAL,
Location:
Hialeah, FL
Manufacturer:
Yangli

Specifications

Condition:
used
Stock number:
6586
Division:
Metalworking
Light curtain, 500mm:
1,500.00
Three modes of operation:
inch, single or continuous
Subcategory:
Brakes & folding

Description

OPTIONAL ACCESSORIES:
Light curtain, 500mm . . . . . . . . . . . . . . . . . . . . . . . 1,500.00
SPECIFICATIONS:
Table length 126" (3200mm)
Distance between housing 102" (2550mm)
Throat depth 12.8" (320mm)
Ram stroke 4" (100mm)
Maximum open height 15.6" (390mm)
Maximum stroke rate 10 spm
Motor 10 HP (7.5KW)
Weight, approx. 16,060 lbs (7300 Kgs)
STANDARD FEATURES & ACCESSORIES:
Delam model DA41 2 axis CNC controller
Hydrualic valves manufactured by Rexroth (Bosch)
Seals manufactured by Valque (Japan) and Fietz (Germany)
Three modes of operation: inch, single or continuous
Full length gooseneck punch and 4 way die
Includes full length filler block
