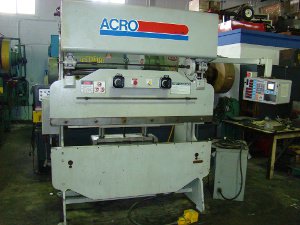

35 Ton, PACIFIC TRI-ACRO, #35-6,
Location:
Hialeah, FL
Manufacturer:
Pacific
Model:
35-6

Specifications

Condition:
used
Stock number:
6437
Division:
Machine Tools

Description

Model number 35-6
Year of manufacture 1989
SPECIFICATIONS:
Capacity 35 tons
Length of bed and ram, overall 72"
Distance between housing, actual 62"
Bending capacity 72" x 14 ga.
60" x 12 ga.
48" x 10 ga.
36" x 3/16"
24" x 1/4"
Ram stroke 2"
Ram screw adjustment 3"
Ram open height 9"
Depth of throat 9"
Motor 3 HP
Electrics 208-230/460/3/60
Weight, approx. 5,500 lbs.
Dimensions (L x W x H) 80" x 52" x 96"
EQUIPPED WITH:
CNC Gauging Systems 2 axis CNC backgauge
Foot control and dual palm buttons, Ram return button
Mode selector for set up, inch and auto return operations
Single selector for SLOW/HI/SLOW and HI/STOP/SLOW provides fast
approach and slow down or stop at any present point to prevent
sheet whip-up.
Ram position counters, Centralized one shot lubrication system
CNC GAUGING SYSTEMS CONTROL SPECS:
Gage travel 25"
Guage bar length 42"
Vertical travel 8-3/4"
Horizontal adjustment 7"
Accuracy +/- 0.002"
Position repeatability +/- 0.001"
Bending angle accuracy +/- 1/2 of 1 degrees
Gauge speed 800 IPM
