Top Seller

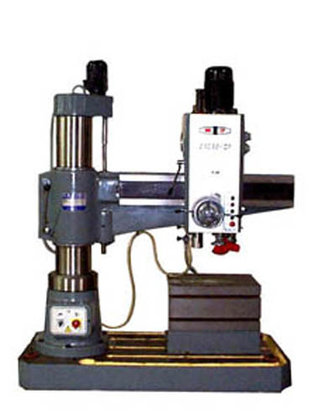

39" x 9 1/2", USI,
Location:
Hialeah, FL
Manufacturer:
Usi

Specifications

Condition:
used
Stock number:
4972
Division:
Metalworking
Inbound freight from tennessee:
750.00
Subcategory:
Drills, radial
Subcategory 2:
Drilling & tapping

Description

Inbound freight from Tennessee . . . . . . . . . . . . . . . . . . 750.00
STANDARD ACCESSORIES:
3 HP, 220/440 volt, 3 phase, 60 Hz motor with switch and wiring complete
Power arm elevation
Box work table
Coolant system
Work light
Tool box with necessary wrenches and spanners
Instruction manual and parts list
SPECIFICATIONS:
Column diameter 9-1/2" (238mm)
Distance from spindle
center to column--minimum 12" (300mm)
--maximum 39.4" (1000mm)
nose to base--minimum 8.07" (200mm)
--maximum 39" (1000mm)
Horizontal travel--spindle head 32" (800mm)
Vertical travel of arm 27" (675mm)
Spindle speeds--number 16
--range 32 to 2500 rpm
Spindle taper #4MT
Quill travel 11" (225mm)
Quill powerfeed--number 8
--range .003 to .04"/min.
Drilling--cast iron 1-1/4" (31mm)
Work table dimension (L x W x H) 20" x 20"
(500mm x 500mm)
Motors--main spindle 3 HP
Power-electrical 60 Hz., 3 ph. 220/440 Volt
Dimensions (L x W x H) 32" x 70" x 91"
Machine net weight/Shipping 3520 lbs
