20", WILLIS-SOLBERGA, #SE2025/PW, 1.1/1.5 HP,
Location:
Hialeah, FL
Manufacturer:
Willis

Specifications

Condition:
used
Stock number:
5388
Division:
Metalworking
Coolant package:
780.00
Foot operated reverse switch:
790.00
Subcategory:
Drilling & tapping

Description

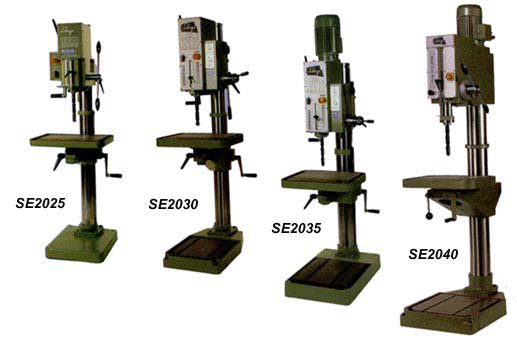

One new WILLIS-SOLBERGA 20" Geared Head Drill Press with manual
feed and standard equipment (#SE2025). . . . . . . . . . . . . $ 4,130.00
One new WILLIS-SOLBERGA 20" Geared Head Drill Press with power
feed and standard equipment (#SE2025PW). . . . . . . . . . . . $ 5,790.00
OPTIONAL ACCESSORIES:
Foot operated reverse switch. . . . . . . . . . . . . . . . . . . . 790.00
Coolant package . . . . . . . . . . . . . . . . . . . . . . . . . . 780.00
SPECIFICATIONS:
Drill capacity in mild steel 1"
Spindle taper #3 MT
Distance center of spindle to column 10"
Quill diameter 2-3/8"
Spindle travel 5.3"
Spindle speeds--number 8
--range (standard) 90 to 3,285 rpm
Optional power feed rates 0.004, 0.006 or 0.012 IPR
Column diameter 4"
Table size 14" x 20"
Vertical travel of drill head 8"
Vertical travel of table 21"
Maximum distance spindle to table 33"
Main motor 1.1 / 1.5 HP
Approximate weight 400 lbs.
FEATURES:
Adjustable drill head heights on all models
Drill head and table arm can rotate 360 degrees around the column.
Helical drive gears with fiber to steel mesh provide virtual
maintenance free, quite & efficient operation
Spindles and columns are made of top quality Swedish steel
Spindles are designed recessed into the quill housing provide
superb rigidity
Powerfeed units are equipped with an automatic feed overload
Each machine is equipped with electrical thermal overload switch,
no-volt release and emergency stop
