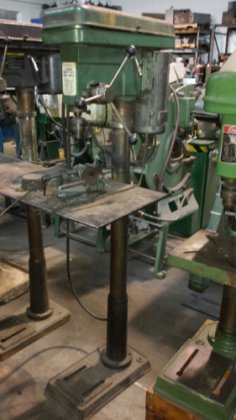

16", CENTRAL, #T-583, 5/8" cap.,
Location:
Hialeah, FL
Manufacturer:
Central
Model:
T-583

Specifications

Condition:
used
Stock number:
6510
Division:
Metalworking
Subcategory:
Drilling & tapping

Description

Model number T-583
SPECIFICATIONS:
Center of spindle to column 8-1/4"
Drilling capacity--cast iron 5/8"
Table dimensions 13-3/4" diameter
Quill travel 3"
Quill spindle taper #2MT
Column diameter 3-1/8"
Spindle motor 1 HP
Electrics 115/1/60
Weight (approx.) 200 lbs.
EQUIPPED WITH:
DC drive speed control, Foot pedal, 0 to 5/8" drill chuck
Table swivel 45 degrees left and right
Locking rack and pinion mechanism for table height adjustment
