Top Seller

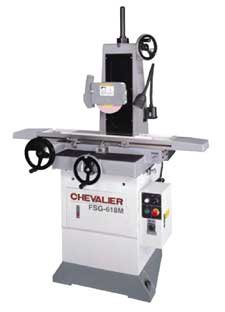

6" x 18", CHEVALIER, No.
Location:
Hialeah, FL
Weight:
ea 85.00

Specifications

Condition:
used
Stock number:
4066
Division:
Metalworking
Coolant system 11 gal:
600.00
Wheel balancing stand:
300.00
2" x 3" precision vise:
170.00
3" x 4" precision vise:
300.00
Heavy duty dust collector:
970.00
2-1/2" x 4" precision vise:
220.00
Wheel hub flange with weights:
ea 85.00
Inland freight from california:
1,000.00
Coolant splash guard and nozzle:
360.00
Coolant system with paper filter:
1,400.00
Subcategory:
Grinding

Description

OPTIONAL ACCESSORIES:
Kanetsu or Chevalier 6" X 18" permanent magnetic chuck. . . . . . . 835.00
Coolant system 11 gal . . . . . . . . . . . . . . . . . . . . . . . 600.00
Combination coolant/dust collector system . . . . . . . . . . . . . 1,350.00
Parallel (over-the-wheel) wheel dresser . . . . . . . . . . . . . . 450.00
Wheel hub flange with weights . . . . . . . . . . . . . . . . . .ea 85.00
Wheel balancing stand . . . . . . . . . . . . . . . . . . . . . . . 300.00
Coolant splash guard and nozzle . . . . . . . . . . . . . . . . . . 360.00
Combination coolant/dust collector with magnetic seperator. . . . . 2,400.00
Newall digital readout system, installed 2 axis . . . . . . . . . . 2,850.00
O.S. Walker 6" x 18" fine division permanent magnetic chuck . . . . 2,100.00
0.S. Walker 6" x 18" electro-magnetic chuck (requires controller) . 1,800.00
O.S. Walker electromagnetic chuck controller with manual
release and variable holding feature . . . . . . . . . . . . . . 810.00
O.S. Walker electromagnetic chuck controller with automatic
release and full, variable and residual holding features . . . . 1,080.00
2" x 3" precision vise. . . . . . . . . . . . . . . . . . . . . . . 170.00
2-1/2" x 4" precision vise. . . . . . . . . . . . . . . . . . . . . 220.00
3" x 4" precision vise. . . . . . . . . . . . . . . . . . . . . . . 300.00
Coolant system with paper filter . . . . . . . . . . . . . . . . . 1,400.00
Heavy duty dust collector . . . . . . . . . . . . . . . . . . . . . 970.00
Universal wheel guard for side forming. . . . . . . . . . . . . . . 360.00
Inland freight from California. . . . . . . . . . . . . . . . . . . 1,000.00
STANDARD ACCESSORIES:
Cartridge type spindle with coupling, supported by pre-loaded super
precision angular contact ball bearings to assure excellent accuracy
Hardened and ground steel guideways with steel balls and
continuous loop cog timing belt system for table drive
to ensure smoothness and longevity of hand feed operation
Table handwheel is indexible for ease of operation
Automatic continuous lube system with oil sight gage on column
Saddle travels on double "V" guide ways laminated with "Turcite B"
Meehanite castings
Flatness is guaranteed to be within 0.0001".
Halogen machine lamp
Diamond dresser and diamond
Automatic lubrication
One grinding wheel and hub
Leveling screws & pads
Wheel extracting screw & nuts
Balancing arbor
Tool box with tools, wrenches, etc.
Operating manual and parts list
SPECIFICATIONS:
Grinding length (maximum) 18"
Grinding width (maximum) 6"
Longitudinal table travel (maximum) 19"
Crossfeed table travel (maximum) 7"
Distance spindle ce center to table
center (maximum) 18"
Downfeed handwheel--per graduation .0001"
Downfeed handwheel--per revolution .05"
Crossfeed handwheel-per graduation .0005"
Crossfeed handwheel-per revolution .100"
Grinding wheel dimensions--diameter 8"
--width 1/2" or 1"
--hole size 1-1/4"
Spindle motor (3450 rpm) 2.0 HP
Shipping dimensions (L x W H) 41" x 47" x 76"
Machine weight 1,
