Top Seller

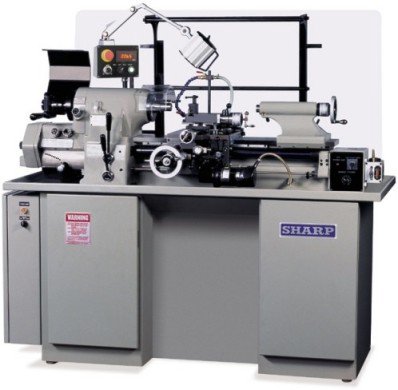

No. 1118H with DVS, SHARP,
Location:
Hialeah, FL
Manufacturer:
Sharp lathes

Specifications

Condition:
used
Stock number:
4807
Division:
Metalworking
Face plate:
310.00
Follow rest:
478.00
Steady rest:
546.00
Vertical cut-off slide:
1,260.00
Taper turning attachment:
1,925.00
Quick change toolpost set:
997.50
Microsyn 10 reader heads, installed:
2,700.00

Description

OPTIONAL ACCESSORIES:
3-jaw 6" chuck with 6" fixture plate. . . . . . . . . . . . . . . . $ 1,201.00
4-jaw 6" chuck with 6" fixture plate. . . . . . . . . . . . . . . . 950.00
Steady rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 546.00
Quick change toolpost set . . . . . . . . . . . . . . . . . . . . . 997.50
Follow rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 478.00
Face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 310.00
Vertical cut-off slide. . . . . . . . . . . . . . . . . . . . . . . 1,260.00
Taper turning attachment. . . . . . . . . . . . . . . . . . . . . . 1,925.00
Newall Model C80 2 axis digital readout system with 6" x 18"
Microsyn 10 reader heads, installed. . . . . . . . . . . . . . 2,700.00
FEATURES:
Precision angular contact ball bearings
Inch/metric quick change gear box
5 HP main motor
130 to 4000 rpm spindle speed (5C collet)
Hardened and precision ground bedways
Turcite B bearing surface between carriage and bed
Independent variable speed while cutting
Thread length control stops with fine adjustment
Spindle runout is within 50 millionths or less
5C collet closer is standard
Less vibration
STANDARD ACCESSORIES:
Drive plate, Drive gear, 5C collet closer, Headstock center,
Tool box and tool kits, Operations manual, Drive dog, Touch up paint,
Accuracy chart, Coolany system, Splash guard, Collet holder racks
Halogen worklight, Spindle nose cover, Adjustable tool setting guages
SPECIFICATIONS:
Spindle capacitcity
--with round 5C collets 1-1/16"
--with hexagon 5C collets 7/8"
--with square 5C collets 3/4"
--with expanding chucks 3"
--with jaw chucks 5"
Spindle nose 5C
Speeds--number infinitely variable
--range for 5C collet 130 to 4000 rpm
Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"
Distance between centers 18"
Inch threads--number 36
--range 11 to 108 tpi
Metric threads--number 36
--range .275 to 2.7 tpmm
Carriage power feed range 5/16" to 7"
Cross slide power feed range 3/16" to 4"
Cross slide travel 6"
Quick-action compound slide travel 0.1"
Compound slide travel 3"
Tailstock spindle diameter 1.358"
Tailstock spindle taper #2 MT
Tailstock spindle travel 3-3/4"
Main motor 5 HP
Coolant motor 1/4 HP
Electrics 220/3/60
Machine weight 2,300 lbs.
Machine packing dimensions 74" x 34" x 74"
