ACER 20GH Series Lathes in
Location:
Hialeah, FL
Manufacturer:
Acer lathes

Specifications

Condition:
used
Stock number:
4084
F.o.b:
New Jersey
Division:
Metalworking
Electrics:
220/440 volts, 3 phase, 60 Hz.
Follow rest:
375.00
20" face plate:
495.00
Rear tool post:
1,090.00
Four way tool post:
440.00
Taper installation:
300.00
Micrometer carriage stop:
190.00
Four (4) position carriage stop:
310.00
Freight from new jersey to miami:
800.00
Subcategory:
Lathes, engine

Description

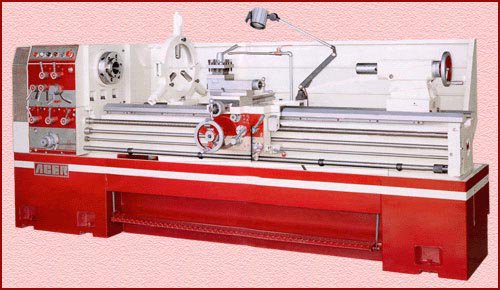

ACER 20" x 40" Model 2040GH High Precision Engine Lathe . . . . . . $16,000.00
ACER 20" x 60" Model 2060GH High Precision Engine Lathe . . . . . . 17,500.00
ACER 20" x 80" Model 2080GH High Precision Engine Lathe . . . . . . 19,600.00
OPTIONAL ACCESSORIES:
16" diameter 4 jaw independant chuck. . . . . . . . . . . . . . . . $ 935.00
20" face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 495.00
Follow rest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375.00
Micrometer carriage stop. . . . . . . . . . . . . . . . . . . . . . 190.00
Four (4) position carriage stop . . . . . . . . . . . . . . . . . . 310.00
Four way tool post. . . . . . . . . . . . . . . . . . . . . . . . . 440.00
DORIAN super quick change tool post with 6 tool holders . . . . . . 1,260.00
Taper turning attachment, not installed . . . . . . . . . . . . . . 1,705.00
Taper installation. . . . . . . . . . . . . . . . . . . . . . . . . 300.00
Rear tool post. . . . . . . . . . . . . . . . . . . . . . . . . . . 1,090.00
NEWALL two axis "LATHEPAC" digital readout system . . . . . . . . . P.O.R.
Freight from New Jersey to Miami. . . . . . . . . . . . . . . . . . 800.00
ELECTRICS: 220/440 volts, 3 phase, 60 Hz.
F.O.B.: New Jersey
STTANDARD ACCEESSORIES:
Removable gap, Micrometer stop, 4-way toolpost,
Inch and metric threading (no gear change required)
Dual inch/metric dials on cross slide & compound
(inch dial only on longitudinal handwheel)
12" diameter universal 3 jaw chuck
12" diameter independant 4 jaw chuck
17" face plate, Steady rest with roller jaws
Coolant pump, Hardened and ground bedways
Halogen light, Full length splash guard
Assorted tools, Operation and service manual
Automatic longitudinal multiple feed stop
SPECIFICATIONS:
Swing over bed 20"
Swing over cross slide 13"
Swing in gap 27-1/8"
Distance between centers 40", 60" or 80"
Spindle hole 3-1/8"
Spindle nose D1-8 camlock
Spindle speeds--number 18
--range 20 to 1500 rpm
Inch threads--number 36
--range 4 to 56 tpi
Metric threads--number 24
--range 0.5 to 7 mm
Feeds--number
--range (longitudinal) .002" to .035"
--range (cross) .02" to .035"
Bed width 13-7/8"
Tailstock taper #5 MT
Spindle travel 5-15/16"
Spindle diameter 2-11/16"
Main motor power 10 HP
Weight (approx.) 4180, 5120 or 6030 lbs.
Floor dimensions 91", 110" or 130" x 41"
