Top Seller

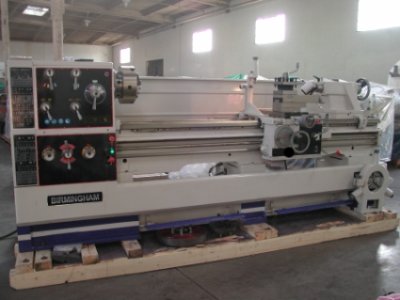

26" x 80" cc, BIRMINGHAM,
Location:
Hialeah, FL
Manufacturer:
Birmingham lathes

Specifications

Condition:
used
Stock number:
5878
Division:
Metalworking
Inland freight:
1,500.00
Telescopic type taper attachment:
$ 1,095.00
Subcategory:
Lathes, engine

Description

OPTIONAL ACCESSORIES:
Telescopic type taper attachment. . . . . . . . . . . . . . . . . . $ 1,095.00
Dorian quick change toolpost with 6 tool holders. . . . . . . . . . 1,450.00
Inland freight . . . . . . . . . . . . . . . . . . . . . . . . . . 1,500.00
STANDARD EQUIPMENT:
3 jaw chuck, 4 jaw chuck, Coolant system, Steady rest
Follow rest, Thread dial, Face plate, Worklight
Thread chasing dial, 4 way rapid traverse
Four way toolpost, Tool box, Operations and parts manual
OUTSTANDING FEATURES:
10 HP main spindle motor, Inch dials and leadscrews
Hardened and ground gears and bedways, 4-way rapid traverse,
One piece cast iron base, Jog button, Safety foot brake,
Centralized lube system in headstock, 4-1/8" spindle bore
SPECIFICATIONS:
Swing over bed 26" (660mm)
Swing over cross slide 17-1/2" (440mm)
Swing over gap 36" (900mm)
Distance between centers 80" (2000mm)
Spindle nose D1-8
Spindle bore 4-1/8" (105mm)
Taper of spindle bore MT#5
Number of spindle speeds 16
Range of spindle speeds 26 to 1700 rpm
Inch threads--number 54
--range 7/16 to 80 tpi
Metric threads--number 54
--range 0.45 to 120 mm
Number of feeds--number 25
--range of cross .00165 to .05497 ipr
--range of longitudinal .00083 to .02774 ipr
Cross slide travel 14-1/2" (368mm)
Compound rest travel 9-1/4" (230mm)
Tailstock spindle travel 9-1/4" (235mm)
Tailstock taper of center MT#5
Tailstock spindle diameter 3-1/2" (90mm)
Width of the bed face 16" (400mm)
Main spindle motor 10 HP
Eelctrics 220/440/3/60
Floor space required 49" x 148"
Net weight 6,380 lbs.
