22" x 160" cc, SUMMIT,
Location:
Hialeah, FL
Manufacturer:
Summit lathes

Specifications

Condition:
used
Stock number:
6188
F.o.b:
Oklahoma City, OK
Delivery:
From stock, subject to prior sale
Division:
Metalworking
Electrics:
220/440/volt, 3 phase, 60 Hz.
Speccifications:

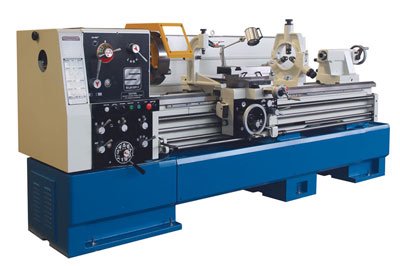

SUMMIT MODEL 22 x 160 LATHE
Subcategory:
Lathes, engine

Description

STANDARD ACCESSORIES:
Thread dial, Steady rest, Follow rest, Coolant system,
Taper attachment, 15 HP main motor, Removable gap,
12" 3 jaw chuck with top 2 piece jaws, 15-3/4" 4 jaw chuck
4 postion carriage stop, Halogen work light, Clutched headstock,
Inch/metric dials, Halogen worklight, Full length splash guard
Four way rapid traverse, Electric brake
OPTIONAL ACCESSORIES:
NEWALL DP700 two axis digital readout system . . . . . . . . . . . 5,150.00
Installation of NEWALL digital readout system. . . . . . . . . . . 800.00
DORIAN quick change toolpost with five holders . . . . . . . . . . 1,300.00
ELECTRICS: 220/440/volt, 3 phase, 60 Hz.
F.O.B.: Oklahoma City, OK
DELIVERY: From stock, subject to prior sale
SPECCIFICATIONS: SUMMIT MODEL 22 x 160 LATHE
CAPACITIES:
Swing over bed 22" (550 mm)
Swing over cross slide 12-1/2" (313 mm)
Swing over gap 32" (800 mm)
Distance between centers 160" (4000 mm)
HEADSTOCK:
Spindle speeds--number 12
Spindle speeds--range 35 to 1250 rpm
Hole thru spindle 4-1/8" (103 mm)
Spindle nose type D1-8 camlock
QUICK CHANGE GEARBOX:
Threads per inch--number 36
--range 2 to 28
Metric threads--number 65
--range .8 to 14
Longitudinal feeds--number 23
--range .001 to .027
Cross feeds--number 23
--range .0005 to .0135
TAPER ATTACHMENT:
Degrees of taper +/- 10 degrees
Length of taper per setting 16"
TAILSTOCK:
Travel of spindle barrel 6-1/2" (163 mm)
Diameter of spindle barrel 3" (75 mm)
Taper of center #5 MT
BED:
Width of bed 16" (400 mm)
Hardened & ground inserted ways 44-50 Rockwell C
DRIVE & MOTORS:
Main drive motor 15 HP (11.25 KW)
Coolant pump motor 1/4 HP (0.2 KW)
SHIPPING DATA:
Overall width 36" (900 mm)
Overall height 54" (1350 mm)
Overall length 223" (5575 mm)
Overall weight 10,670 lbs (4850 kg)
