Top Seller
20" x 60" cc, SUMMIT,
Location:
Hialeah, FL
Manufacturer:
Summit lathes

Specifications

Condition:
used
Stock number:
6183
F.o.b:
Oklahoma City, OK
Delivery:
From stock, subject to prior sale
Division:
Metalworking
Electrics:
220/440/volt, 3 phase, 60 Hz.
Speccifications:

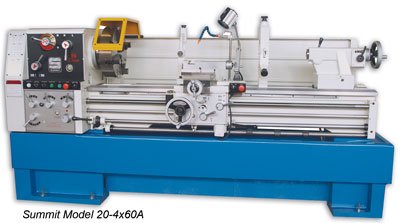

SUMMIT MODEL 20 x 60 LATHE
Subcategory:
Lathes, engine

Description

STANDARD ACCESSORIES:
Thread dial, Steady rest, Follow rest, Coolant system,
Taper attachment, 3 jaw chuck, 4 jaw chuck, 10 HP main motor,
4 postion carriage stop, Halogen work light, Clutched headstock,
Inch/metric dials, Halogen worklight, Full length splash guard
Four way rapid traverse, Electric brake, Removable gap
OPTIONAL ACCESSORIES:
NEWALL DP700 two axis digital readout system . . . . . . . . . . . 2,525.00
Installation of NEWALL digital readout system. . . . . . . . . . . 500.00
DORIAN quick change toolpost with five holders . . . . . . . . . . 1,300.00
ELECTRICS: 220/440/volt, 3 phase, 60 Hz.
F.O.B.: Oklahoma City, OK
DELIVERY: From stock, subject to prior sale
SPECCIFICATIONS: SUMMIT MODEL 20 x 60 LATHE
CAPACITIES:
Swing over bed 20" (500 mm)
Swing over cross slide 13-1/4" (329 mm)
Swing over gap 30" (750 mm)
Distance between centers 60" (1500 mm)
HEADSTOCK:
Spindle speeds--number 12
Spindle speeds--range 32 to 1500 rpm
Hole thru spindle 4-1/8" (103 mm)
Spindle nose type D1-8 camlock
QUICK CHANGE GEARBOX:
Threads per inch--number 45
--range 2 to 72
Metric threads--number 42
--range .2 to 14
Longitudinal feeds--number 32
--range .002 to .0400
Cross feeds--number 32
--range .001 to .0200
TAPER ATTACHMENT:
Degrees of taper +/- 10 degrees
Length of taper per setting 16"
TAILSTOCK:
Travel of spindle barrel 6" (150 mm)
Diameter of spindle barrel 3" (75 mm)
Taper of center #5 MT
BED:
Width of bed 13" (325 mm)
Hardened & ground inserted ways 44-50 Rockwell C
DRIVE & MOTORS:
Main drive motor 10 HP (7.5 KW)
Coolant pump motor 1/8 HP (0.1 KW)
SHIPPING DATA:
Overall width 44" (1100 mm)
Overall height 64" (1600 mm)
Overall length 114" (2850 mm)
Overall weight 5590 lbs (2541 kg)
