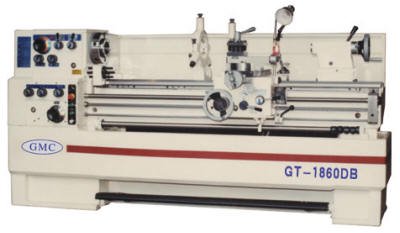

GMC GT-1840DB or GT1860DB, 7.5
Location:
Hialeah, FL
Manufacturer:
GMC lathes

Specifications

Condition:
used
Stock number:
6272
Motor:
7.5 HP 220/440 volts / 3 phase, Micrometer carriage stop
Division:
Metalworking
Inland freight to miami, fl:
950.00
60" center lathe instead of 40:
1,000.00
Subcategory:
Lathes, engine

Description

OPTIONAL ACCESSORIES:
SINO digital readout system, installed . . . . . . . . . . . . . . $ 1,000.00
60" center lathe instead of 40". . . . . . . . . . . . . . . . . . 1,000.00
Inland freight to Miami, FL. . . . . . . . . . . . . . . . . . . . 950.00
STANDARD ACCESSORIES:
Removable gap
Motor: 7.5 HP 220/440 volts / 3 phase, Micrometer carriage stop
10" 3 jaw chuck with D1-8 direct mount
12" 4 jaw chuck with D1-8 direct mount
16" Face plate, Splash guard, Steady rest, Follow rest
Centers and sleeve, Tool box, Four sided toolpost, Coolant system
Work light, Thread chasing dial, Taper attachment
Inch/metric threading, Dual inch/metric dials
Misc. wrenches and tools, Operation & parts manual
Full length foot brake, Full length splash guard
FEATURES:
ISO 9001 certified
One-piece cast iron base, No change gears required
Main spindle hardened & precision ground
Bed made of fine grain high tensile cast iron
Bedways induction hardened & precision ground
All gears and shafts hardened & precision ground
Main spindle supported at 3 point by precision bearings
Automatic kick-out longitudinal carriage stop system
SPECIFICATIONS:
Swing over bed 18"
Swing over cross slide 11-5/16"
Swing over gap 25-3/16"
Length of gap 10-1/4"
Distance between centers 40"/60"
Width of bed 12"
Hole thru spindle 3-1/16"
Spindle nose D1-8 camlock
Spindle speeds--number 12
--range 24 to 1600
Inch threads--number 40
--range 2 to 56 tpi
Metric threads--number 53
--range .4 to 14 mm
Tailstock spindle travel 4-3/4"
Tailstock taper #4 MT
Motor HP 7.5 HP
Coolant pump motor 1/8 HP
Electrics 220/440/3ph/60Hz
Net weight--40" cc/60"cc 5450/5950 lbs
Dimensions (L x W x H)--40" cc 88" x 41" x 57"
--60" cc 108" x 41" x 57"
