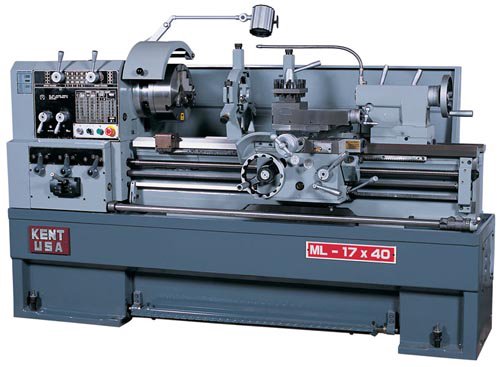

KENT USA 17" x 40"
Location:
Hialeah, FL
Manufacturer:
Kent lathes

Specifications

Condition:
used
Stock number:
5364
Delivery:
In stock, subject to prior sale
Division:
Metalworking
Electrics:
230/460 volts, 3 phase, 60 Hz.
Micrometer carraige stop:
350.00
Taper turning attachment:
1,650.00
Dog plate (plato de arrastre):
395.00
Subcategory:
Lathes, engine

Description

OPTIONAL ACCESSORIES:
NEWALL two axis DP700 digital readout system (10" X 40"). . . . . . 2,773.00
DORIAN quick change tool post with 6 tool holders . . . . . . . . . 1,500.00
Taper turning attachment. . . . . . . . . . . . . . . . . . . . . . 1,650.00
10" 4 jaw independent chuck (D1-6) (moldaza 4 muelas) . . . . . . . 695.00
12" face plate with D1-6 mount (plato plano). . . . . . . . . . . . 650.00
Dog plate (plato de arrastre) . . . . . . . . . . . . . . . . . . . 395.00
Live center with #4MT shanfk (centro jiratorio) . . . . . . . . . . 670.00
Micrometer carraige stop. . . . . . . . . . . . . . . . . . . . . . 350.00
Inland freight to Miami (stock machines only) . . . . . . . . . . . 1,500.00
ELECTRICS: 230/460 volts, 3 phase, 60 Hz.
DELIVERY: In stock, subject to prior sale
STANDARD ACCESSORRIES:
10" 3 jaw chuck, Steady rest, Follow rest, Chuck cover
Halogen work light, Thread chasing dial, Four way toolpost
Coolant system, Full length splash guard, 3 position carriage stop
Bed mounted carriage stop, 3.125" spindle bore, 7.5 HP motor
Solid full length casting bed with front loading chip tray
Adjustable over-load feed clutches, Quick reversal feed at apron
Full length safety foot brake, Spindle jog button, One shot lube
Dual inch/metric dials with quick change sleeves, Two speed tailstock
SPECIFICATIONS:
Swing over bed 17" (435mm)
Swing over cross slide 10-7/8" (277mm)
Swing in gap 24-1/2" (622mm)
Distance between centers 40"
Spindle hole 3-1/8"
Spindle nose D1-6 camlock
Spindle speeds--number 12
--range 36 to 1800 rpm
Inch threads--number 45
--range 2 to 72 tpi
Metric threads--number 39
--range 0.2 to 14 mm
Feeds--number
--range (longitudinal) .0015" to .04"
--range (cross) .00075" to .02"
Bed width 12"
Tailstock taper #4 MT
Spindle travel 5" (130mm)
Spindle diameter 2.3" (59mm)
Main motor power 7.5 HP
Gross weight (approx.) 4510 lbs.
Dimensions (L x W x H) 88" x 39" x 63"
