Top Seller
16" x 40"cc, SHARP, #1640LV,
Location:
Hialeah, FL
Manufacturer:
Sharp

Specifications

Condition:
used
Stock number:
5270
Delivery:
From sm stock, subject to prior sale
Division:
Metalworking
Electrics:
220/440/volt, 3 phase, 60 Hz.
In-bound freight:
1,200.00
Taper attachement, part #18c-03:
1,650.00
Subcategory:
Lathes, engine

Description

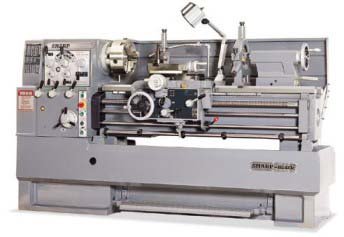

One new SHARP Model 1640LV 16" x 40" Engine Lathe
with standard accessories plus package . . . . . . . . . . . . . $17,100.00
STANDARD ACCESSORIES:
10" 3-jaw chuck, Coolant system, Splash guard, American toolpost,
Follow rest, Work light, Face plate, Steady rest, Tool kit,
Longitudinal carriage stop
PLUS PACKAGE ACCESSORIES:
Acu-Rite 200T digital readout system (installed), Live center,
KDK quick change toolpost set, Micrometer carraige stop
OPTIONAL ACCESSORIES:
12" BISON 4 jaw chuck with D1-8 camlock. . . . . . . . . . . . . 850.00
Taper attachement, part #18C-03. . . . . . . . . . . . . . . . . 1,650.00
5C lever operated collet closer, installed . . . . . . . . . . . 950.00
In-bound freight . . . . . . . . . . . . . . . . . . . . . . . . 1,200.00
ELECTRICS: 220/440/volt, 3 phase, 60 Hz.
DELIVERY: From sm stock, subject to prior sale
CAPACITIES:
Swing over bed 16"
Swing over cross slide 8-3/4"
Swing over gap 24-3/8"
Length of gap 10-3/4"
Distance between centers 40"
Spindle speeds--number Infinitely varaible
Spindle speeds--range 40 to 2000 rpm
Hole thru spindle 3"
Spindle nose type D1-8 camlock
Threads per inch--number 36
--range 4 to 56
Metric threads--number 17
--range 0.5 to 7
Travel of spindle barrel 5"
Diameter of spindle barrel 2-1/4"
Taper #4 MT
Main drive motor 7-1/2 HP
Overall weight 3600 lbs
