14" x 40" cc, SUMMIT,
Location:
Hialeah, FL
Manufacturer:
Summit

Specifications

Condition:
used
Stock number:
4599
F.o.b:
Oklahoma City, OK
Delivery:
From stock, subject to prior sale
Division:
Metalworking
Electrics:
220/440/volt, 3 phase, 60 Hz.
Speccifications:

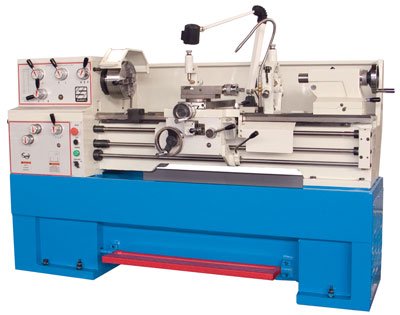

SUMMIT MODEL 14 x 40 LATHE
Subcategory:
Lathes, engine

Description

STANDARD ACCESSORIES:
Thread dial, Steady rest, Follow rest, Coolant system,
Taper attachment, 8" dia. 3 jaw chuck with top 2 piece jaws,
8" dia. 4 jaw chuck with solid reversible jaws, Foot brake,
Carriage stop, Four way toolpost and 4 HP main motor,
Inch/metric dials, Halogen worklight, Full length splash guard
OPTIONAL ACCESSORIES:
Bison 10" dia. semi steel body 3 jaw chuck w/top two piece jaws. . 1,500.00
Bison 10" dia. forged steel body 3 jaw chuck w/top two piece jaws. 1,900.00
(above optional items aare in lieu of standard 8" 3 jaw chuck)
NEWALL DP700 two axis digital readout system . . . . . . . . . . . 2,234.00
Installation of NEWALL digital readout system. . . . . . . . . . . 400.00
DORIAN quick change toolpost with five holders . . . . . . . . . . 1,400.00
ELECTRICS: 220/440/volt, 3 phase, 60 Hz.
F.O.B.: Oklahoma City, OK
DELIVERY: From stock, subject to prior sale
SPECCIFICATIONS: SUMMIT MODEL 14 x 40 LATHE
CAPACITIES:
Swing over bed 14" (350mm)
Swing over cross slide 8-1/4" (204mm)
Swing over gap 20" (500mm)
Length of gap 9-1/4" (256mm
Distance between centers 40" (1000mm)
HEADSTOCK:
Spindle speeds--number 12
Spindle speeds--range 40 to 1800 rpm
Hole thru spindle 1-1/2" (37mm)
Spindle nose type D1-4 camlock
Headstock center No 4MT
QUICK CHANGE GEARBOX:
Threads per inch--number 40
--range 4 to 112
Metric threads--number 24
--range 7.5 to 45
Longitudinal feeds--number 40
--range .0011 to .0271
Cross feeds--number 40
--range .0003 to .0090
TAILSTOCK:
Travel of spindle barrel 5" (125mm)
Diameter of spindle barrel 1-3/4" (44mm)
Taper of center #3 MT
BED:
Width of bed 10-1/4" (256mm)
Hardened & ground inserted ways 42-48 Rockwell C
DRIVE & MOTORS:
Main drive motor 4 HP
Coolant pump motor 1/8 HP (0.1 KW)
MISCELLANEOUS:
Steady rest capacity--range 3/8" to 4" (9.5 to 100mm)
Follow rest capacity--range 3/8" to 2-1/2" )9.5 to 64mm)
Centerline height above floor 44" (1118mm)
SHIPPING DATA:
Overall width 36" (900 mm)
Overall height 54" (1350 mm)
Overall length 78" (1988 mm)
Overall weight 2491 lbs (1132kg)
