Top Seller
14" x 40"cc, SHARP, #1440V,
Location:
Hialeah, FL
Manufacturer:
Sharp

Specifications

Condition:
used
Stock number:
5272
Delivery:
From sm stock, subject to prior sale
Division:
Metalworking
Electrics:
220/440/volt, 3 phase, 60 Hz.
Follow rest:
145.00
In-bound freight:
1,000.00
Taper attachement, part #18c-03:
790.00
Subcategory:
Lathes, engine

Description

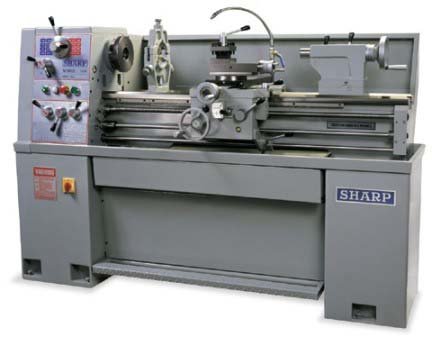

One new SHARP Model 1440V 14" x 40" Engine Lathe
with standard accessories plus package . . . . . . . . . . . . . $11,800.00
STANDARD ACCESSORIES:
Coolant system, Splash guard, Four (4) way toolpost, Foot brake,
6" back plate, Tool kit, Thread dial, Dead center, Center sleeve
and Steady rest
PLUS PACKAGE ACCESSORIES:
8" 3-jaw chuck, Acu-Rite 200T digital readout system (installed)
Live center, 5C collet closer (installed), Worklight and
Micrometer carraige stop
OPTIONAL ACCESSORIES:
8" BISON 4 jaw chuck with D1-4 camlock . . . . . . . . . . . . . 680.00
Taper attachement, part #18C-03. . . . . . . . . . . . . . . . . 790.00
Follow rest. . . . . . . . . . . . . . . . . . . . . . . . . . . 145.00
Aloris quick change toolpost with holders. . . . . . . . . . . . 950.00
In-bound freight . . . . . . . . . . . . . . . . . . . . . . . . 1,000.00
ELECTRICS: 220/440/volt, 3 phase, 60 Hz.
DELIVERY: From sm stock, subject to prior sale
CAPACITIES:
Swing over bed 14"
Swing over cross slide 8-5/8"
Swing over gap 20"
Distance between centers 40"
Spindle speeds--number Infinitely varaible
Spindle speeds--range 30 to 2200 rpm
Hole thru spindle 1.5"
Spindle nose type D1-4 camlock
Threads per inch--number 40
--range 4 to 112
Metric threads--number 22
--range 0.45 to 7.5
Travel of spindle barrel 4-1/2"
Diameter of spindle barrel 1-3/4"
Taper #3 MT
Main drive motor 3 HP
Overall weight 1650 lbs
