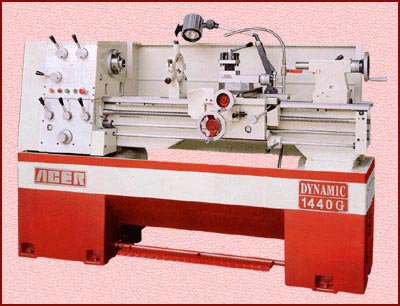

14" x 40" cc, ACER,
Location:
Hialeah, FL
Manufacturer:
Acer lathes

Specifications

Condition:
used
Stock number:
4426
Division:
Metalworking
Electrics:
220/440 volts, 3 phase, 60 Hz.
5c lever operated collet chuck:
1,250.00
Four (4) position carriage stop:
350.00
Freight from new jersey to miami:
800.00
Subcategory:
Lathes, engine

Description

OPTIONAL ACCESSORIES:
Four (4) position carriage stop . . . . . . . . . . . . . . . . . . 350.00
DORIAN D30-BXA-BS quick change tool post with 4 tool holders. . . . 875.00
Machined T nut for the above at Dorian. . . . . . . . . . . . . . . 60.00
5C lever operated collet chuck. . . . . . . . . . . . . . . . . . . 1,250.00
Taper turning attachment (not installed). . . . . . . . . . . . . . 800.00
Installation Fee for taper turning attachment . . . . . . . . . . . 250.00
NEWALL "Topaz Lathe" two axis DRO, 8" x 40"--installed. . . . . . . 2,650.00
Freight from New Jersey to Miami. . . . . . . . . . . . . . . . . . 800.00
ELECTRICS: 220/440 volts, 3 phase, 60 Hz.
STANDARD ACCESSORIES:
Removable gap, One piece Cast-Iron Base
Hardened and ground bedways, 1-9/16" spindle bore
Spindle mounted with precision tapered roller bearings
6" diameter universal 3 jaw chuck
8" diameter four chuck chuck
Slotted face plate--12" diameter
Steady rest (0.4" to 4.3"), Four way toolpost
Built in coolant system, Halogen Light, Foot brake
D1-4 Camlock Spindle Nose, 3HP main motor
Enclosed feed/thread gearbox providing inch & metric threads
Built-in safety overload friction clutch in apron
Headstock ground gears
Tailstock barrel with inch/metric graduations
Full length splash guard
Operation and service manual
SPECIFICATIONS:
Swing over bed 14"
Swing over cross slide 9"
Swing in gap 21"
Distance between centers 40"
Spindle hole 1-9/16"
Spindle nose D1-4 camlock
Spindle speeds--number 8
--range 65 to 2000 rpm
Inch threads--number 32
--range 3 to 56 tpi
Metric threads--number 22
--range 0.25 to 6 mm
Feeds--number
--range (longitudinal) .002" to .04" rev
--range (cross) .001" to .02" rev.
Bed width 10"
Bed length 58"
Tailstock taper #3 MT
Tailstock spindle travel 4-1/4"
Spindle diameter 1-1/2"
Main motor power 3 HP
