Top Seller

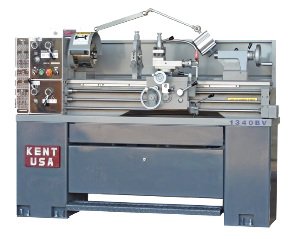

KENT USA SSM-1340BV Engine Lathes,
Location:
Hialeah, FL
Manufacturer:
Kent lathes

Specifications

Condition:
used
Stock number:
6297
F.o.b:
California
Delivery:
In stock, subject to prior sale
Division:
Metalworking
Electrics:
220 volts, 1 or 3 phase, 60 Hz.
10" face plate:
400.00
Taper turning attachment:
950.00
5c lever operated collet chuck:
1,085.00
Subcategory:
Lathes, engine

Description

OPTIONAL ACCESSORIES:
NEWALL two axis C80 digital readout system (10" x 40"). . . . . . . 2,300.00
DORIAN quick change tool post with 6 tool holders . . . . . . . . . 930.00
5C lever operated collet chuck. . . . . . . . . . . . . . . . . . . 1,085.00
Taper turning attachment. . . . . . . . . . . . . . . . . . . . . . 950.00
10" face plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 400.00
Inland freight to Miami (stock machines only) . . . . . . . . . . . 750.00
ELECTRICS: 220 volts, 1 or 3 phase, 60 Hz.
F.O.B.: California
DELIVERY: In stock, subject to prior sale
OUTSTANDING FEATURES:
3 HP main spindle motor, Infinitely variable spindle speeds with
digital RPM display in Hi/Low gear speed ranges
Capable of being run on single or 3 phase power
Jog button for easy gear changes, Hardened and ground gears and bedways
Foot brake and T-slotted compound, Removable chip pan for easy clean up
Inch/metric ruler on tailstock quill, ISO 9001 certified manufacturer
STANDARD ACCESSORRIES:
7" 3 jaw chuck, 8" 4-jaw chuck, Steady rest, Follow rest,
Four way toolpost Work light, Thread chasing dial, Coolant system
Full length splash guard, Toolbox with standard tools
SPECIFICATIONS:
Swing over bed 13" (330mm)
Swing over cross slide 8-1/4" (210mm)
Swing in gap 18-1/2" (470mm)
Distance between centers 40" (1000mm)
Spindle hole 1-9/16" (40mm)
Spindle nose D1-4 camlock
Spindle speeds--number infinitely variable
--range--low 40 to 365 rpm
--high 218 to 2000 rpm
Inch threads--number 34
--range 2 to 56 tpi
Metric threads--number 33
--range 0.5 to 12 mm
Feeds--number
--range (longitudinal) .0016" to .046"
--range (cross) .0005" to .015"
Bed width 7-1/2" (190mm)
Tailstock taper #3 MT
Quill travel 4" (100mm)
Quill diameter 1-9/16" (40mm)
Main motor power 3 HP
Gross weight (approx.) 1,584 lbs.
Dimensions (L x W x H) 77" x 30" x 60"
