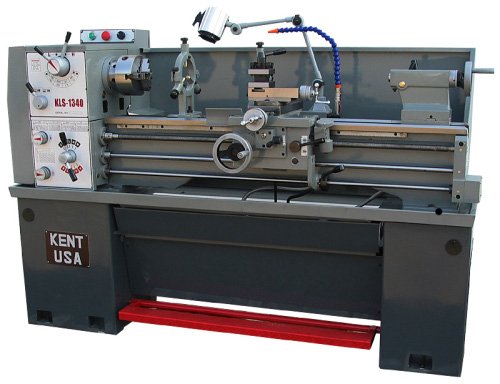

KENT USA KLS-1340 Engine Lathes,
Location:
Hialeah, FL
Manufacturer:
Kent lathes

Specifications

Condition:
used
Stock number:
5655
F.o.b:
California
Delivery:
In stock, subject to prior sale
Division:
Metalworking
Electrics:
220 volts, 1 phase, 60 Hz.
5c lever operated collet chuck:
950.00
Subcategory:
Lathes, engine

Description

OPTIONAL ACCESSORIES:
NEWALL two axis C80 digital readout system (10" x 40"). . . . . . . 2,300.00
DORIAN quick change tool post with 6 tool holders . . . . . . . . . 800.00
5C lever operated collet chuck. . . . . . . . . . . . . . . . . . . 950.00
Inland freight to Miami (stock machines only) . . . . . . . . . . . 400.00
ELECTRICS: 220 volts, 1 phase, 60 Hz.
F.O.B.: California
DELIVERY: In stock, subject to prior sale
OUTSTANDING FEATURES:
2 HP main spindle motor, 8 speeds, All geared heastock
Jog button for easy gear changes, Hardened and ground gears and bedways
Foot brake and T-slotted compound
Removable chip pan for easy clean up, Inch/metric reading on dials
Inch/metric ruler on tailstock quill, ISO 9001 certified manufacturer
STANDARD ACCESSORRIES:
6" 3 jaw chuck, 8" 4-jaw chuck, 12" face plate
Steady rest, Follow rest, Four way toolpost
Halogen work light, Thread chasing dial, Coolant system
Full length splash guard, Micrometer carriage stop
Toolbox with standard tools
SPECIFICATIONS:
Swing over bed 13" (330mm)
Swing over cross slide 7-1/4" (185mm)
Swing in gap 18-3/4" (476mm)
Distance between centers 40" (1000mm)
Spindle hole 1-1/2" (38mm)
Spindle nose D1-4 camlock
Spindle speeds--number 8
--range 70 to 2000 rpm
Inch threads--number 32
--range 4 to 56 tpi
Metric threads--number 32
--range 0.40 to 7 mm
Feeds--number
--range (longitudinal) .0032" to .1067"
--range (cross) .00086" to .0367"
Bed width 7-3/8" (187mm)
Tailstock taper #3 MT
Spindle travel 3-5/8" (95mm)
Spindle diameter 1-1/2" (40mm)
Main motor power 2 HP
Gross weight (approx.) 1310 lbs.
Dimensions (L x W x H) 80" x 35" x 61"
