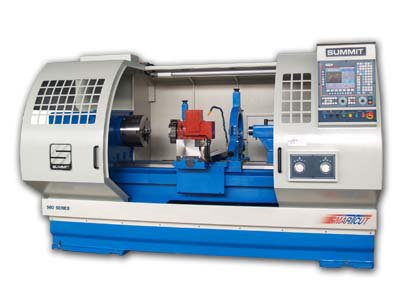

SUMMIT SmartCut 24"-4 x 120"
Location:
Hialeah, FL
Manufacturer:
Summit

Specifications

Condition:
used
Stock number:
5472
Division:
Metalworking
Electrics:
220/volt, 3 phase, 60 Hz.
Chip conveyor:
6,400.00
Specifications:
SUMMIT SmartCut 24-4 x 120" CNC LATHE
440 volts electrics:
1,500.00
Installation assistance:
TBD
Remote manual pulse generator:
1,000.00

Description

STANDARD ACCESSORIES:
12" 3 jaw chuck w/ 2 piece jaws, Steady rest with rollers
Follow rest, Coolant system, Work lamp
OPTIONAL ACCESSORIES:
12" steel body 3 jaw chuck in lieu of standard chuck. . . . . . . . 2,500.00
Remote manual pulse generator . . . . . . . . . . . . . . . . . . . 1,000.00
ALORIS indexing tool post with holders. . . . . . . . . . . . . . . 4,300.00
Automatic 8 position electric turret. . . . . . . . . . . . . . . . 12,000.00
Chip conveyor . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,400.00
Installation assistance . . . . . . . . . . . . . . . . . . . . . . TBD
440 volts electrics . . . . . . . . . . . . . . . . . . . . . . . . 1,500.00
ELECTRICS: 220/volt, 3 phase, 60 Hz.
SPECIFICATIONS: SUMMIT SmartCut 24-4 x 120" CNC LATHE
CAPACITIES:
Swing over bed 24"
Swing over cross slide 16"
Swing over gap 31"
Length of gap 15.3"
Distance between centers 120" (3000mm)
HEADSTOCK:
Spindle speeds--number 3 ranges
Spindle speeds--range 22 to 1500 rpm
Hole thru spindle 4-1/8" (105mm)
Spindle nose type D1-11 camlock
Headstock center No 7MT
CARRIAGE:
Cross slide travel 16"
Longitudinal travel 118"
Feed rate (Z axis) 0 to 400 IPM
Feed rate (X axis) 0 to 250 IPM
Ballscrew diameter (Z axis) 2"
Ballscrew diameter (X axis) 1"
TAILSTOCK:
Travel of spindle barrel 8.8"
Diameter of spindle barrel 3"
Taper #5 MT
BED:
Width of bed 17.7"
Depth of bed 16"
Hardened & ground inserted ways 48-56 Rockwell C
DRIVE & MOTORS:
Main drive motor 20 HP
Z axis motor 1.4 HP
X azis motor 2.7 HP
Coolant pump motor 1/8 HP
Flow rate of pump 9 GPM
SHIPPING DATA:
Overall (W x H x L) 72" x 86" x 200"
Weight, approx. 11,000 lbs.
STANDARD CONTROL FEATURES:
GENERAL:
RS-232 C serial port, RS-422 interface, Two DNC channels
BASIC OPERATIONS:
DRO mode, Jog mode, Axis position, Feed rate & spindle control
Tool selection, Home search, Constant surface speed, Continous jog
Semi-Auto operations, Axis feed rate setting (0 to 120%)
Increment jog, Axis jog via electric handwheel
AUXILIARY FUNCTIONS:
Inch/metric, Radius/diameter, Feed in IPM or IPR, Tool calibration
and Cycle finish pass
SPINDLE:
RPM or CSS, Speed range change, CW/CCW rotation, Spindle stop and Over-ride
AUTOMATIC OPERATIONS:
User difined cycles, Turning, Facing, Taper turning, Rounding, Threading
Grooving, Positioning, Drilling, Tapping, Safety distance and ISO programs
PROFILES:
Point storage, Point to point movement, Profile in automatic mode,
profile definition and Profile editor
PARTS PROGRAM:
Store up to 1,000,000 parts programs and 10,000 subroutines
Part program selection, Part program editing, Part program execution,
Part program modification and Part program deletion
DISPLAY:
11" color LCD, Texts in Spanish, English, German, France and others
Solid graphics programming aide for automatic operations
Tool path graphics
STANDARD MACHINE FEATURES:
Hardened and precision ground bedways, Precision ground ballscrews,
Electronic handwheels for manual operations, Full CNC operation
Combination manual/CNC opera
