Top Seller

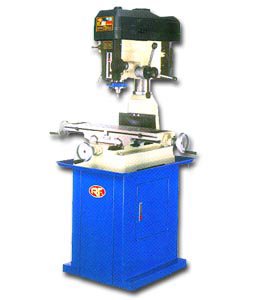

No. RF40, RONG FU, geared
Location:
Hialeah, FL
Manufacturer:
Rong-Fu

Specifications

Condition:
used
Stock number:
4466
Division:
Metalworking
Subcategory:
Millers, vertical

Description

SPECIFICATIONS:
Drilling capacity 1-9/16"
Face mill capacity 3"
End mill capacity 1-1/4"
Swing 21"
Max. distance spindle nose-table 18-1/2"
Spindle taper MT3; R-8
Spindle stroke 5"
Diameter of spindle sleeve 3"
Head swivel 360 degrees
Diameter of column 4-1/2"
Spindle speeds--number 6
--range 60, 130, 230,
450, 800, 1500 RPM
Forward/backward travel of table 9"
Right & left travel of table 19-3/4"
Working area of table 28-3/4" x 8-1/4"
Motor 1.5 HP
Gross weight 660 lbs.
STANDARD EQUIPMENT:
Push button switch, Carbide tipped face mill, Angle drill press vise,
Drill chuck taper shank, Drill chuck with key
