Top Seller

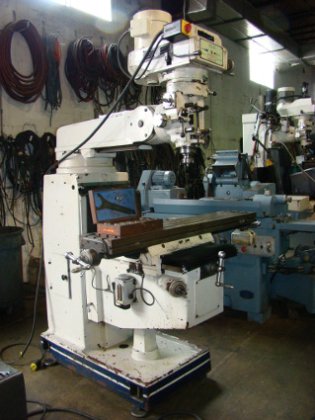

VECTRAX, #GS20V, 10" x 54"
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
6525
Division:
Machine Tools
Subcategory:
Vertical millers

Description

SPECIFICATIONS:
Size of table (length x width) 10" x 54" (250mm x 1350mm)
Hardened & ground ways yes
Longitudinal travel 32" (800mm)
Cross travel 16.5" (412mm)
Vertical knee travel 17.5" (437mm)
Quill traverse 5" (127mm)
Quill power feed rd rate--number 3
--range (ipr) .0015/.003/.006
Spindle taper NT40
Main motor 3 HP
Electrics 220/440/3/60
Spindle speeds--number infinitely variable
--range 70-3600 rpm
Net weight (approx.) 3,500 lbs.
Dimensions (L x W x H) 72" x 62" x 90"
EQUIPPED WITH:
Power feed unit--longitudinal, One sho lube system,
Square ways on cross and vertical travel, Levelling pads
ETM ER40 flex collet set with master holde
