Top Seller

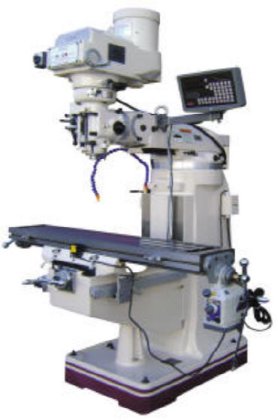

No. GMM-949VPKG, GMC, NEW, 3
Location:
Hialeah, FL
Manufacturer:
GMC machining centers

Specifications

Condition:
used
Stock number:
6295
Division:
Metalworking
Electrics:
220/440 volt, 3 phase, 60 Hz.
T-slot cover:
40.00
6" riser block:
580.00
8" riser block:
605.00
Clamping kit (52 piece):
120.00
6" angle-lock milling vise:
405.00
Subcategory:
Millers, vertical

Description

OPTIONAL ACCESSORIES:
MITUTOYO digimatic quill kit (LED readout for spindle). . . . . . . 400.00
ALIGN model AL250 150 lb power feed unit, cross (installed) . . . . 750.00
ALIGN model AL250 150 lb power feed unit, knee vert (installed) . . 750.00
12" rotary table (vertical & horizontal). . . . . . . . . . . . . . 725.00
Clamping kit (52 piece) . . . . . . . . . . . . . . . . . . . . . . 120.00
R-8 collet set (11 piece, 1/8" to 3/4") . . . . . . . . . . . . . . 155.00
6" angle-lock milling vise. . . . . . . . . . . . . . . . . . . . . 405.00
Horizontal milling attachment (not installed) . . . . . . . . . . . 1,030.00
Mechanical air power draw bar (not installed) . . . . . . . . . . . 595.00
Automatic air power draw bar (not installed). . . . . . . . . . . . 825.00
T-slot cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . 40.00
6" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 580.00
8" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 605.00
In-bound freight to Miami, FL (stock machine) . . . . . . . . . . . 750.00
ELECTRICS: 220/440 volt, 3 phase, 60 Hz.
STANDARD ACCESSORIES:
Taiwan mill, ALIGN power feed unit on X axis, installed
SINO 2 axis digital readout system, installed
ISO 9001 certified, 3 HP spindle motor, One shot lubricator
R8 spindle hardened and ground, Turcite-B on X and Y ways
Hardened and ground dovetail guideways, Hand scaped precision ways
Hardened and ground table top, Meehanite castings
Chrome plated precision ground quill with internal ground of quill housing
Class 7 spindle bearings, Power quill feeds with automatic stop
Tool box, Rubber way covers, One draw bar, Precision ground ACME leadscrew
Parts and operations manual
SPECIFICATIONS:
Size of table (length x width) 9" x 49" (230mm x 1225mm)
Hardened & ground ways yes
Table load capacity 650 lbs.
Longitudinal travel with powerfeed 36" (900mm)
Cross travel 12" (305mm)
Ram traverse 16" (400mm)
Vertical knee travel 12" (300mm)
Quill traverse 5" (127mm)
Quill power feed rate--number 3
--range (ipr) .0015/.003/.006
Spindle taper R-8
Main motor 3 HP
Head moves right to left 90 degrees
Head tilts front to back 45 degrees
Spindle speeds--number infinitely variable
--range 68 to 4300 rpm
Net weight (approx.) 2,650 lbs.
Dimensions (L x W x H) 63" x 57" x 83"
