Top Seller
No. 6KV, METALMAQ, 5HP, 40MT,
Location:
Hialeah, FL
Manufacturer:
Metalmaq

Specifications

Condition:
used
Stock number:
4031
Division:
Machine Tools
Specification:

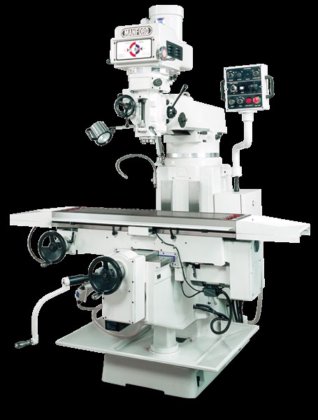

METALMAQ 6KV Vertical Mill
Riser block--4:
$ 500.00
Riser block--6:
$ 550.00
Riser block--8:
$ 600.00
Specifications:
See page 2
Table guarding:
800.00
Quartz work light:
$ 150.00
52 piece clamping kit:
$ 95.00
Homge 6" swivel base vise:
$ 465.00
Mitutoyo digimatic quill kit:
$ 400.00
Kurt mechanical power drawbar:
$ 850.00
Subcategory:
Vertical millers

Description

OPTIONAL ACCESSORIES:
12" x 58" extended table providing additional 6" X travel . . . . . $ 900.00
Newall DP700 two axis digital readout system (installed). . . . . . $ 1,950.00
Newall DP700 three axis digital readout system (installed). . . . . $ 2,700.00
Mitutoyo digimatic quill kit . . . . . . . . . . . . . . . . . . . $ 400.00
KURT mechanical power drawbar . . . . . . . . . . . . . . . . . . . $ 850.00
Tilting head (right & left, front & rear) . . . . . . . . . . . . . 350.00
Table guarding. . . . . . . . . . . . . . . . . . . . . . . . . . . 800.00
Column splash guard (left & right 2 pieces) . . . . . . . . . . . . 600.00
Riser block--4" . . . . . . . . . . . . . . . . . . . . . . . . . . $ 500.00
Riser block--6" . . . . . . . . . . . . . . . . . . . . . . . . . . $ 550.00
Riser block--8" . . . . . . . . . . . . . . . . . . . . . . . . . . $ 600.00
Quartz work light . . . . . . . . . . . . . . . . . . . . . . . . . $ 150.00
HOMGE 6" swivel base vise . . . . . . . . . . . . . . . . . . . . . $ 465.00
52 piece clamping kit . . . . . . . . . . . . . . . . . . . . . . . $ 95.00
5 HP inverter motor EVS hear with Yaskawa drive, 5000 RPM . . . . . $ 1,800.00
Inland freight from California to Florida plant (estimated) . . . . $ 1,800.00
SPECIFICATIONS: See page 2
STANDARD ACCESSORIES:
Quill diameter 4.13" (105mm); 1.18" (30mm) larger than similar machines
Huge 40" (1016mm) wide saddle and large 50" x 12" (1270 x 305mm) table,
supported by a strong knee and 1.5" (38mm) diameter elevating screw
Optional 12" x 58" table providing 6" additional X axis travel (extra cost)
Longitudinal and crossfeed rate is adjustable steplessly by AC high
frequency inverter motor
5HP variable speed head, #40 tapered spindle
90 degrees swivel left & right, Power drawbar NST#40
45 degree tilt forward & backwards (option)
Box ways on Y-cross axis and Z-vertical axis
Hardened and ground X & Y slideways
Turcite-B coated X & Y gibs and saddle slideways
Hardened and ground table with ground T-slots
X-Y double nut, C5 ballscrews (32mm diameter)
Electric control box & panel, Coolant system and coolant tray
Centralized auto lubrication system, Lifting motor for the knee
SPECIFICATION: METALMAQ 6KV Vertical Mill
SPECIFICATIONS:
Table working surface dimension 50" x 12" (1270 x 305mm)
Optional oversized table 58" x 12" (1470 x 305mm)
Table T-slots--quantity and size 3" x 5/8" (3 x 16mm)
Axis travel ranges--X,Y,Z 33.5" x 16" x 16"
With large table--X,Y,Z 40" x 16" x 16"
Table weight capacity 1320 lbs (600 kgs)
Spindle speed --number Inf. variable
--range 60-4200 rpm
Spindle taper NST #40
Vertical stroke of quill 5" (127mm)
Quill feedrate (rev)ipr .0015",.003",.006"/rev
(mm)mmpr 0.04mm, 0.08mm, 0.14mm
Swiveling angle of head (L-R) 45-0-45
Ram cross travel 20" (510mm)
Swivel of ram 360 Degrees
Spindle center to column front
surface (min/max) 5.5"-25.6" (140mm~650mm)
Spindle nose to table top (min/max) 2.75" - 18" (70mm~460mm)
Longitudinal feedrate (min/mm) 1.375"-27.5"/min (35mm~700mm)
