Top Seller

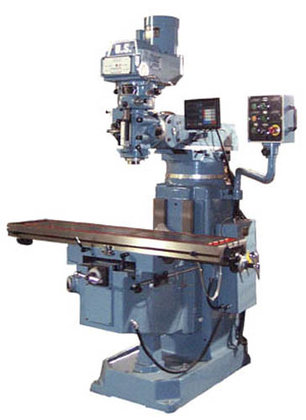

No. 5VM, USI, 12-1/2" x
Location:
Hialeah, FL
Manufacturer:
Usi
Control:
diamter NST spindle, Square Y and Z ways

Specifications

Condition:
used
Stock number:
4970
Delivery:
From stock, F.O.B. CA, subject to prior sale
Division:
Metalworking
Electrics:
220/440 volt, 3 phase, 60 Hz.
Coolant system:
340.00
Coolant tray base:
295.00
Quartz work light:
160.00
Pendent controls, 4:
diamter NST spindle, Square Y and Z ways
Auto lubrication pump:
250.00
Clamping kit (52 piece):
120.00
Swivel base for 6" vise:
175.00
6" angle-lock milling vise:
405.00
Subcategory:
Millers, vertical

Description

OPTIONAL ACCESSORIES:
Extended Table 11" X 58", X travel 6" . . . . . . . . . . . . . . . $ 400.00
Auto lubrication pump . . . . . . . . . . . . . . . . . . . . . . . 250.00
Coolant system. . . . . . . . . . . . . . . . . . . . . . . . . . . 340.00
Coolant tray base . . . . . . . . . . . . . . . . . . . . . . . . . 295.00
Quartz work light . . . . . . . . . . . . . . . . . . . . . . . . . 160.00
NEWALL Topaz 2 axis digital readout (installed) . . . . . . . . . . $ 1,645.00
NEWALL Topaz 3 axis digital readout (installed) 3rd axis quill. . . $ 2,195.00
ALIGN model AL250 150 lb power feed unit, longitudinal (installed). 500.00
ALIGN model AL250 150 lb power feed unit, cross (installed) . . . . 750.00
12" rotary table (vertical & horizontal). . . . . . . . . . . . . . 725.00
Clamping kit (52 piece) . . . . . . . . . . . . . . . . . . . . . . 120.00
6" angle-lock milling vise. . . . . . . . . . . . . . . . . . . . . 405.00
Swivel base for 6" vise . . . . . . . . . . . . . . . . . . . . . . 175.00
Mechanical air power draw bar (not installed) . . . . . . . . . . . 595.00
ELECTRICS: 220/440 volt, 3 phase, 60 Hz.
DELIVERY: From stock, F.O.B. CA, subject to prior sale
STANDARD ACCESSORIES:
Meehanite castings, Ways and slides are hardened and ground
Standard with heavy duty 5 HP main motor with varable speed drive
system and a 2 HP knee lifting drive motor
Automatic lubrication, Flood coolant, Oversized chip pan
Pendent controls, 4: diamter NST spindle, Square Y and Z ways
SPECIFICATIONS:
Size of table (length x width) 11" x 52" (279 X 1320mm)
T slots No X size 3" X 5/8" (3 X 15.875mm)
Hardened & ground ways yes
Longitudinal travel w/o power feed 32 1/4" (820mm)
with power feed 28 1/2" (725mm)
Cross travel 16" (410mm)
Ram traverse 22" (560mm)
Vertical knee travel 17" (450mm)
Quill traverse 5" (127mm)
Quill power feed rate--number 3
--range (ipr) .0015/.003/.006
Spindle taper NST #40
Main motor 5 HP
Head moves right to left 90 degrees
Head tilts front to back 45 degrees
Spindle speeds--number infinitely variable
--range 60-4300 rpm
Net weight (approx.) 3,500 lbs. (2000 kgs)
