Top Seller

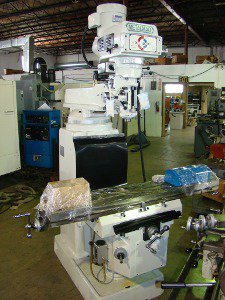

No. 3VKH, METALMAQ, NEW in
Location:
Hialeah, FL
Manufacturer:
Metalmaq

Specifications

Condition:
used
Stock number:
4015
Delivery:
From stock, subject to prior sale
Division:
Metalworking
Electrics:
220/440 volt, 3 phase, 60 Hz.
Quarts light:
200.00
4" riser block:
560.00
6" riser block:
620.00
8" riser block:
680.00
Clamping kit (52 piece):
150.00
Swivel base for 6" vise:
175.00
Coolant system (installed):
720.00
58" table in lieu of 54" table:
695.00
Import 6" angle-lock milling vise:
450.00
Spray mist coolant system installed:
250.00
Subcategory:
Millers, vertical

Description

OPTIONAL ACCESSORIES:
NEWALL DP700 two axis digital readout (installed) . . . . . . . . . $ 2,000.00
NEWALL DP700 three axis digital readout (installed) . . . . . . . . $ 2,735.00
MITUTOYO digimatic quill kit (LED readout for spindle-installed). . 400.00
SERVO 150 lb power feed unit, longitudinal (installed). . . . . . . 1,200.00
DYNAMO 140 lb power feed unit, longitudinal (installed) . . . . . . 750.00
SERVO 150 lb power feed unit, cross (installed) . . . . . . . . . . 1,280.00
DYNAMO 140 lb power feed unit, cross (installed). . . . . . . . . . 750.00
SERVO 140 lb power feed unit, knee vertical (installed) . . . . . . 1,250.00
DYNAMO 140 lb power feed unit, knee vert (installed). . . . . . . . 750.00
12" rotary table (vertical & horizontal). . . . . . . . . . . . . . 1.250.00
Coolant system (installed). . . . . . . . . . . . . . . . . . . . . 720.00
Clamping kit (52 piece) . . . . . . . . . . . . . . . . . . . . . . 150.00
R-8 collet set (11 piece, 1/8" to 3/4") . . . . . . . . . . . . . . 275.00
Import 6" angle-lock milling vise . . . . . . . . . . . . . . . . . 450.00
Swivel base for 6" vise . . . . . . . . . . . . . . . . . . . . . . 175.00
Horizontal milling attachment (not installed) . . . . . . . . . . . 1,030.00
Mechanical air power draw bar (not installed) . . . . . . . . . . . 695.00
4" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 560.00
6" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 620.00
8" riser block. . . . . . . . . . . . . . . . . . . . . . . . . . . 680.00
58" table in lieu of 54" table. . . . . . . . . . . . . . . . . . . 695.00
Spray mist coolant system installed . . . . . . . . . . . . . . . . 250.00
Quarts light. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200.00
In-bound freight to Miami, FL (stock machine) . . . . . . . . . . . 1,250.00
ELECTRICS: 220/440 volt, 3 phase, 60 Hz.
DELIVERY: From stock, subject to prior sale
STANDARD ACCESSORIES:
ISO-9002 compliant, 3 HP spindle motor, One shot lubricator
Licensed Meehanite casting, Gear housing made of cast iron
Precision hardened & ground square ways--Y & Z axes
Hardened and ground leadscrews--X & Y axes
Turcite-B on slideways, gibs and saddle slideways--X & Y axes
Spindle is made of SCM415 (SAE4115) chrome molybdenum alloy steel,
fully hardened and ground.
Rigid design of spindle automatic feed mechanism
Thrust bearing support on lead screws, Leveling pads,
Strict hand scraping (16 points per square inch)
Two year parts warranty (one year for consumables: ie motor, brake shoes,
springings, belts, bearings, electrical parts, pulleys, etc.)
Tool box, Way covers, One draw bar, Parts and operation manual
SPECIFICATIONS:
Size of table (length x width) 10" x 54" (250mm x 1370mm)
Table to spindle 3.3"-21" (85-535mm)
Hardened & ground ways yes
Longitudinal travel 34" (870mm)
With poer feed 30.5" (775mm)
Cross travel 16" (400mm)
Ram traverse 22" (562mm)
Vertical knee travel 17" (450mm)
Quill traverse 5" (127mm)
Quill power feed rd ra
