Top Seller

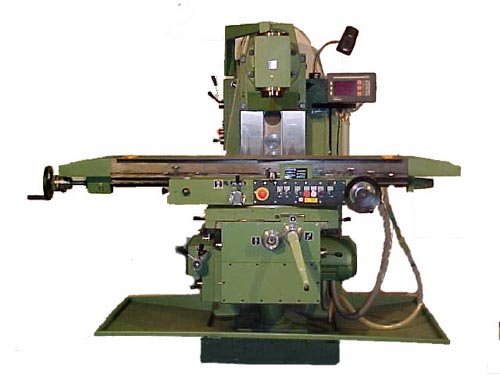

No. FU321, LION, 12-1/2" x
Location:
Hialeah, FL
Manufacturer:
Lion

Specifications

Condition:
used
Stock number:
4969
Division:
Metalworking
In-bound freight to miami, fl:
1,000.00
Subcategory:
Millers, universal

Description

OPTIONAL ACCESSORIES:
Universal dividing head (approximate, awaiting confirmation) . . . $ 6,500.00
In-bound freight to Miami, FL. . . . . . . . . . . . . . . . . . . 1,000.00
MACHINE FEATURES:
Horizontal milling arbor and supports, Vertical milling head,
Automatically pprogrammable table, 6 way rapid traverse,
Backlash eliminator, Coolant pump, Switchboard controls
Three (3) axis digital readout system, installed
SPECIFICATIONS:
Table size 12-1/2" x 60"
Table swivel +/-45 degrees
Table traverse--longitudinal 40"
--cross 14"
--vertical 18-1/4"
Spindle taper 50 IOS
Spindle speeds--number 18
--range 32 to 1600 rpm
Feed range--number 18
--longitudinal & cross 1/2" to 39 ipm
--vertical 1/5" to 16 ipm
Rapid traverse--long and cross 100 ipm
--vertical 41 ipm
Motor power 12.5 HP
Electrics 220/3/60
Dimensions (L x W x H) 103" x 82" x 70"
Weight, approx. 9,500 lbs.
