Top Seller

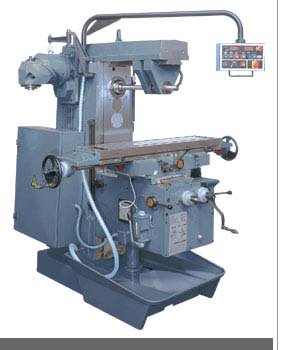

No. FU-125, LAGUN, 11" x
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
5339
Division:
Metalworking
In-bound freight to miami, fl:
1,000.00
Universal vertical head, #503-3300:
$ 4,495.00
Subcategory:
Millers, universal

Description

OPTIONAL ACCESSORIES:
Universal vertical head, #503-3300 . . . . . . . . . . . . . . . . $ 4,495.00
8" universal dividing head, #175-111 . . . . . . . . . . . . . . . 4,525.00
10" universal dividing head, #175-1112 . . . . . . . . . . . . . . 4,725.00
12" universal dividing head, #175-1113 . . . . . . . . . . . . . . 5,175.00
In-bound freight to Miami, FL. . . . . . . . . . . . . . . . . . . 1,000.00
MACHINE FEATURES:
Central lube system, Low voltage control, Complete coolant system
Chip and coolant tray, One milling arbor, Two arbor supports
Table backlash eliminator (climb milling), Varaible speed spindle
Universal table swivel +/- 45 degrees, Instruction manual and tools
Power feeds in all directions with 3 axis rapid traverse
SPECIFICATIONS:
Table size 11" x 49-1/4" (280 x 1250mm)
Table swivel +/-45 degrees
Table traverse--longitudinal 33-1/2" (850mm)
--cross 11-1/2" (290mm)
--vertical 18-3/4" (475mm)
Spindle taper #40
Spindle speeds--number variable (Hi-Lo)
--range 35 to 1899 rpm
Feed range--number Variable speed
--longitudinal & cross 0 to 51-3/16 ipm (1300mm)
--vertical 0 to 15-3/8 ipm (390mm)
Rapid traverse--long and cross 98 ipm (2500mm/min)
--vertical 30 ipm (750mm/min)
Main spindle 5 HP (3.72KW)
Feed & rapid traverse motors 2 HP (1.50KW)
Electrics 220/440/3/60
Weight, approx. 3,970 lbs.
