Top Seller

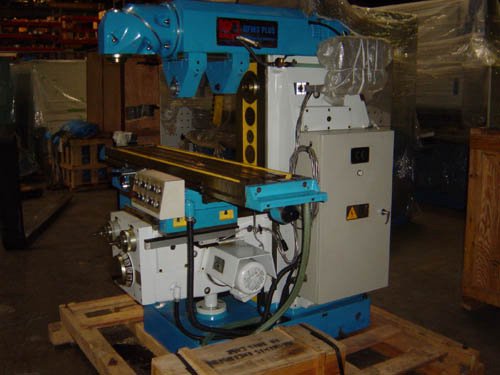

No. 3 Plus, UFM, 11"
Location:
Hialeah, FL
Manufacturer:
Ufm

Specifications

Condition:
used
Stock number:
5361
Division:
Metalworking
In-bound freight to miami, fl:
1,500.00
Subcategory:
Millers, universal

Description

OPTIONAL ACCESSORIES:
In-bound freight to Miami, FL. . . . . . . . . . . . . . . . . . . 1,500.00
MACHINE FEATURES:
Conveniently arranged controls, Universal cutter head,
Allows simultaneous machining in horizontal or vertical spindle
Universal table swivel +/- 45 degrees, Instruction manual and tools
Power feeds in all directions with 3 axis rapid traverse
EQUIPPED WITH:
Horizontal arbors (7/8" and 1"), Set of collets, Reducing sleeves,
Draw bar, Set of wrenches, Foundation tools, Operations manual
Three axis digital readout system (installed)
SPECIFICATIONS:
Table size 11.8" x 59" (300 x 1150mm)
Table swivel +/-45 degrees
Table traverse--longitudinal 30.7"
--cross 9.3"
--vertical 15.8"
Top slide travel 18.5"
Spindle taper #40
Spindle speeds (horizontal)--number 12
--range 35 to 1600 rpm
(vertical)--number 8
--range 67 to 1600 rpm
Feed range--number 14
--longitudinal & cross 0.67 to 30 ipm
--vertical 0.15 to 10 ipm
Rapid traverse--long and cross 80 ipm
--vertical 28 ipm
Horizontal spindle motor 5.5 HP
Vertical spindle motor 3 HP
Feed & rapid traverse motors 1 HP
Electrics 440/3/60
Weight, approx. 6,270 lbs.
Dimensions (L x W x H) 67" x 61" x 68"
