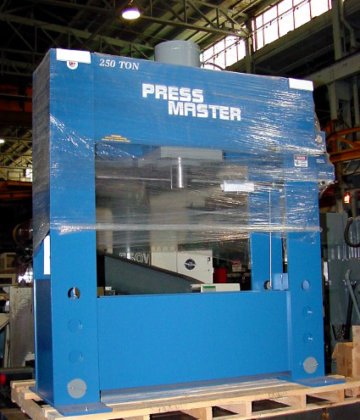

250 Ton, PRESSMASTER, #HFP-250, 16"Str,
Location:
Hialeah, FL, USA
Manufacturer:
Pressmaster

Specifications

Condition:
used
Stock number:
6520
Division:
Machine Tools
Foot pedal:
3,200.00
Safety guard:
1,000.00
Set of v blocks:
$ 800.00
Movable work head:
4,000.00
Subcategory:
Hydraulic presses

Description

OPTIONS ACCESSORIES:
Set of V blocks . . . . . . . . . . . . . . . . . . . . . . . . . . $ 800.00
Safety guard. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,000.00
Foot pedal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,200.00
Adjustable stroke control with foot pedal . . . . . . . . . . . . . 3,600.00
Movable work head . . . . . . . . . . . . . . . . . . . . . . . . . 4,000.00
SPECIFICATIONS:
Capacity 250 tons
Width between uprights 60"
Width between table channels 20"
Maximum ram to table 33"
Ram travel 16"
Bore 12"
Ram speed--advance 17 IPM
--pressing 4 IPM
--return 21 IPM
Mian motor 10 HP
Electrics 208-230/460/3/60
Dimensions (L x W x H) 60" x 96" x 101"
Weight 7,200 lb.
EQUIPPED WITH:
Cylinder activated is finger tip controlled, the more the hand lever
is engaged the more the ram movement increases, allowing the
operator to use proper speed for each task.
Double-action permits pulling as well as pressing action
Pressure regulator--to limit ram pressure
Hydraulic power lift table, Heavy duty steel construction
Tie rods with self locking table, Open sides, Flat ram nose
Low speed pump providing quiet and dependable operation
20 gallon oil reservoir, Low pressure hydraulic system
All parts are standard in the industry and readilty available
Full 1 year warranty, Made in Canada--not a cheap import!
