OPTIONS INCLUDED WITH MACHINE:
Flow control--Allows operator to match ram speed to job
Pressure regulator, to control the amount of pressure
Double-action-- Permits pulling and pressing
Hydraulic power lift table
Heavy duty steel construction, Panel mounted pressure gauge
Open side to facilitate work of long pieces, V blocks & tie rods
Winch operated adjustable table height, Williams piston pump
Safety valve for overload protection, Single hand lever operation
Flat ram nose to allow user to adapt the press to a specific job
Totally enclosed fan cooled Baldor motor, Full 1 year warranty

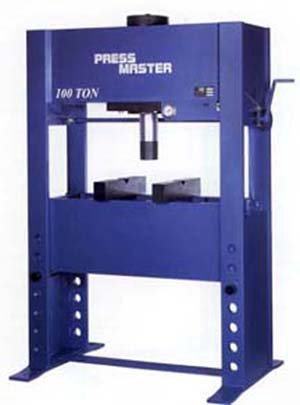

Capacity 100 tons
Width between uprights 42"
Width between table channels 13"
Maximum ram to table 30"
Ram travel 12"
Ram speed--advance 20 IPM
--pressing 26 IPM
Mian motor 2 HP
Dimensions (L x W x H) 30" x 54" x 75"
Weight 2400 lbs.
Self-locking table hoist
Two (2) forged steel V-blocks
