Top Seller

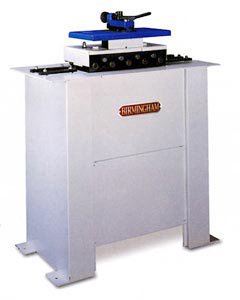

5 STND, BIRMINGHAM, Model L-20,
Location:
Hialeah, FL
Manufacturer:
Birmingham

Specifications

Condition:
used
Stock number:
4061
Division:
Metalworking
Approximate freight:
$ 300.00
Drive cleat roll set:
660.00
Flange attachment top mounted:
1,200.00
Right angle flange rolls, up to 3/8:
660.00
Subcategory:
Roll formers

Description

OPTIONAL ROLLS:
Double seam rolls, 20 to 26 ga., 1" material, 3/8" seam . . . . . . $ 660.00
Right angle flange rolls, up to 3/8". . . . . . . . . . . . . . . . 660.00
Drive cleat roll set. . . . . . . . . . . . . . . . . . . . . . . . 660.00
Flange Attachment top mounted . . . . . . . . . . . . . . . . . . . 1,200.00
FEATURES:
All steel forming shafts hardened and ground
Case hardened steel forming rolls & gears
Needle type roller bearings through out
SPECIFICATIONS:
Capacity, uses approx. 1" of material 20 to 26 gauge
Depth of pocket 5/16"
Speed 25 FPM
Motor 1 HP, single phase
Electrics 115/230/1/60
Drive V-belt
Dimensions (L x W x H) 36" x 16-1/2" x 36 1/2"
Weight, approx. 320 lbs.
Approximate freight . . . . . . . . . . . .$ 300.00
with flange attachment add $ 50.00 for shipment
