Top Seller
5' x 7/32", EAGLE, No.
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
5404
Delivery:
Ex stock or 8-12 weeks, to be confirmed upon ordering
Division:
Metalworking
Cone bending device:
$ 800.00
Section bending dies:
1,270.00
Induction hardened rolls:
1,170.00
Led readout installed on pinch roll:
1,750.00

Description

OPTIONAL ACCESSORIES:
Cone bending device . . . . . . . . . . . . . . . . . . . . . . . . $ 800.00
Induction hardened rolls. . . . . . . . . . . . . . . . . . . . . . 1,170.00
Shaft extension for section bending rolls . . . . . . . . . . . . . 890.00
LED readout & memory preset on bending roll . . . . . . . . . . . . 1,900.00
LED readout installed on pinch roll . . . . . . . . . . . . . . . . 1,750.00
Section bending dies. . . . . . . . . . . . . . . . . . . . . . . . 1,270.00
Trailing lead foot switch for CW/CCW rotation . . . . . . . . . . . 475.00

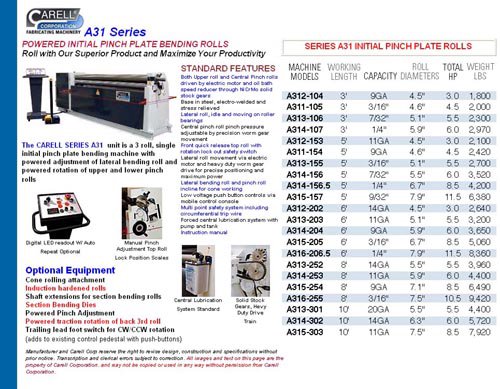

SPECIFICATIONS:
Length 62"
Prebend capacity 7/32"
Rolling capacity 1/4"
Roll diameter 5.9"
Main motor 6 HP (4 + 2)
Electrics 220/3/60
Dimensions (L X H X W) 110" x 30" x 42"
Weight, approx. 3,520 lbs.
STANDARD FEATURES:
Both upper roll and central pinch rolls driven by electric motor and
oil bath speed reducer through NiCrMo solid stock gears
Base in steel, electro-welded and stress relieved
Lateral roll, idle and moving on roller bearings
Central pinch roll pinch pressure adjustable by precision worm gear
movement
Front quick release top roll with rotation lock out safety switch
Leteral roll movement via electric motor and heavy duty worm gear drive
for precise positioning and maximum power
Lateral bending roll and pinch roll incline for cone working
Low voltage push button controls via mobile control console
Multi-point safety system including circumferential trip wire
Forced central lubrication system with pump and tank
Instructions manual
DELIVERY: Ex stock or 8-12 weeks, to be confirmed upon ordering
and receipt of downpayment
