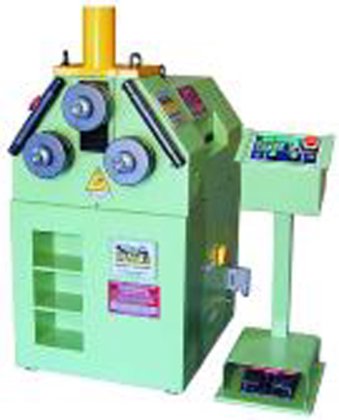

EAGLE, 2" X 2" X
Location:
Hialeah, FL

Specifications

Condition:
used
Stock number:
4336
Division:
Metalworking
Bending capacities:
See descriptive brochure
Rolls for angle iron leg out/in:
560.00

Description

OPTIONAL ACCESSORIES:
Rolls for sch 40 pipe--1/4" to 1 1/2" between (per set). $450.00 to 600.00
tube sizes O.D.--1/4" to 3" OD between (per set). $425.00 to 750.00
Rolls for angle iron leg out/in . . . . . . . . . . . . . . . . 560.00
Special lateral guides for angle iron leg-in. . . . . . . . . . 1,500.00
Custom rolls for extrusions and special profiles. . . . . . . . POR
TECHNICAL SPECIFICATIONS:
Shaft diameters 1-5/8"
Roll diameters 6-3/8" nominal
Drive motor 2.5 HP @ 220V/60Hz
Electrics--standard 220 volt, 3 phase, 60 Hz
Powered rolls All three driven
Position repeat LED readout
Bending adjustment Hydraulic
Dimensions 28" x 39" x 53"H
Approximate weight 1,400 lbs
BENDING CAPACITIES: See descriptive brochure
STANDARD EQUIPMENT:
LED electronic readout, universal bending rolls hardened
Multi-position lateral material guides, Drive motor overload protection
Service tools, Instruction and service manual
STANDARD FEATURES
Three driven rolls bending machine, Rugged frame from solid steel stock
High strength hardened steel shafts and gears, Shafts and drive journaled
in roller bearings, Combination vertical/horizontal working position
Universal rolls, hardened against wear, Lower rolls knurled for optimum
traction, High brightness LED electronic digital display to monitor
top roll position, Top roll moving on hardened slideways
Multi-position adjustable lateral guides, Flush mount electrical cabinet
with safety indicator lamps, thermal overload relay, Low voltage controls
Hydraulic powered top roll adjustment, Push button controls on deteched mobile
pulpit complete with, LED display and automatic position "APR" system
Foot pedals for left/right rotation with dual emergency stop, switches
Integral hydraulic power unit, NR valves and maximum pressure, protection
