Top Seller

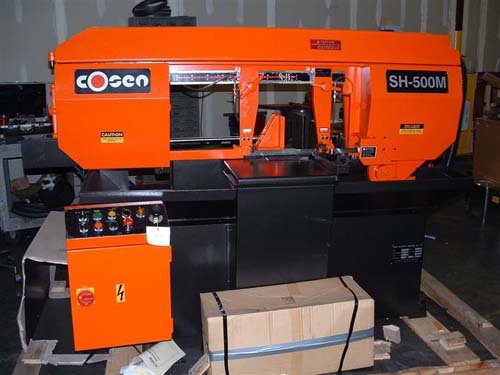

11" x 18" COSEN, No.
Location:
Hialeah, FL
Manufacturer:
Cosen saws

Specifications

Condition:
used
Stock number:
4036
Division:
Metalworking
In-bound freight:
1,200.00
Micro droplet applicator:
POR
Voltage change to 460 volts:
595.00
Transformer for 460v, 3 phase:
POR
Heavy-duty roller table 3'3" long:
795.00

Description

OPTIONAL ACCESSORIES
Variable blade drive system with 3 HP motor 102 fpm thru 377 fpm. . $ 1,095.00
Heavy-duty roller table 3'3" long . . . . . . . . . . . . . . . . . 795.00
Super heavy-duty roller table 5' long . . . . . . . . . . . . . . . 1,195.00
Super heavy-duty roller table 10' long. . . . . . . . . . . . . . . 1,995.00
Micro droplet applicator. . . . . . . . . . . . . . . . . . . . . . POR
Voltage change to 460 volts . . . . . . . . . . . . . . . . . . . . 595.00
Transformer for 460V, 3 phase . . . . . . . . . . . . . . . . . . . POR
In-bound freight. . . . . . . . . . . . . . . . . . . . . . . . . . 1,200.00
STANDARD FEATURES:
STRUCTURE:
The swivel sawhead allows the user to cut at any angle between 90
degrees (straight cut) and 60 degrees (miter cut). The precision
pivot system facilitates easy and accurate adjustment for angle cuts.
The Cosen's SH-500M has a protractor and pointer in clear view and
away from any chips covering the numbers. It also features hard stop
for 90, 45, and 30 degrees for quick angle set up.
Rigid and heavy-duty pivot and trunion insure long machine life.
BLADE DRIVE:
The blade drive is equipped with the best worm gear speed reducer. The
worm shaft is hardened and ground. Together, they provide quite, powerful,
and trouble-free drive.
The standard blade speed control provides four blade speed (75 to 247 fpm)
that can be easily changed with a toggle clamp device to accommodate all
types of materials.
BLADE GUIDANCE & LUBRICATION SYSTEM:
Carbide blades securely guide the blade during the cutting cycle. The
carbide is relieved so that coolant can both cool and lubricate the blade
during the cut. Bearing guides eliminate blade stress by pre-aligning
the blade before it enters the carbide guides.
Cast iron guide arms are rigidly supported bu a large, heavy-duty cast
iron dovetail to assure straight cuts and eliminate vibration for
longer blade life.
Blade tension device insures proper blade tension for quality cuts and
longer blade life.
Integral coolant system
Syncronized blade brush removes the chips from the blade, maximizing
productivity abd extending blade life.
CONTROL & AUTOMATION:
The operator's control station is conveniently located on the front
right side and is very user friendly. All operator controls are
positioned on the top of the control box and clearly labeled for ease of
operation. The machines electrical components are located within the
control box with the main lockout disconnect on the front of the
control box for safety and easy maintenance.
Work height selector--When the head automatically rises after cut-off,
the work height can be preset to allow the head to stop just above the
material. This time saving feature is especially useful when making
repetitive cuts of the same stock.
MATERIAL FEEDING & CLAMPING:
In addition to the sturdy cast work table, an 18" solid discharge table
with coolant return and built-in adjustable material stop are standard
features that make repeated cutting easy.
