Top Seller

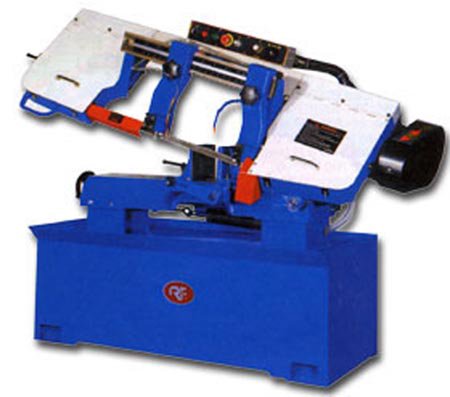

10" x 18", BIRMINGHAM, No.
Location:
Hialeah, FL
Manufacturer:
Birmingham saws

Specifications

Condition:
used
Stock number:
4056
Division:
Metalworking
Inland freight:
$ 250.00

Description

STANDARD FEATURES:
Heavy duty cast iron table
Blade tension adjustment
Convenient front mounted controls
Quick acting vise which allows angle cutting to 45 degrees
Automatic shut-off when cut is complete
Adjustable roller bearing blade guides with carbide wear guides
Hardened and ground worm gears
Blade tension control
Blade chip brush
Recirculating coolant system
SPECIFICATIONS:
Cutting capacity
--round @ 90 degrees 10"
--rectangular @ 90 deg. 10"H x 18" W
--round @ 45 degrees 6"
--rectangular @ 45 deg. 6"H x 7.5"W
Blade size 1" x .037" x 129"
Blade speeds--number 4
--range (sfpm) 114-196-288-377
Vise, swivel type 45-90 deg
Main motor 2 HP
Electrics 220 volt, 1/3 phase
Machine dimensions (LxWxH) 63" x 31" x
Machine weight 836 lbs
Inland freight. . . . . . . . . . . . . . . $ 250.00
