Top Seller

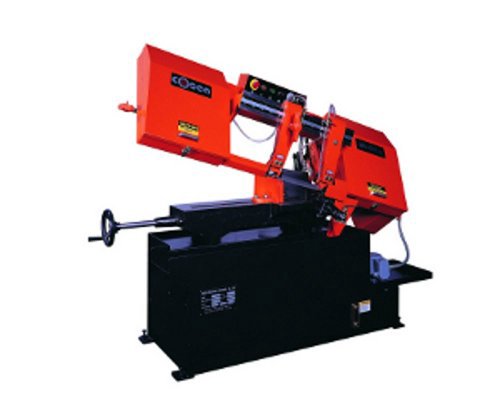

10" x 16", COSEN, No.
Location:
Hialeah, FL
Manufacturer:
Cosen saws

Specifications

Condition:
used
Stock number:
6393
Division:
Machine Tools
Extra year parts warranty:
995.00
Roller table (40" length):
695.00
In-bound freight from factory:
300.00

Description

OPTIONAL ACCESSORIES:
Roller table (40" length). . . . . . . . . . . . . . . . . . . . 695.00
Super heavy duty roller table 5' long. . . . . . . . . . . . . . 1,095.00
Voltage change to 460 volts, 3 phase . . . . . . . . . . . . . . 395.00
Voltage change to 220 volts, 1 phase with static phase converter 495.00
Extra year parts warranty. . . . . . . . . . . . . . . . . . . . 995.00
In-bound freight from factory. . . . . . . . . . . . . . . . . . 300.00
STANDARD FEATURES & ACCESSORIES:
MACHINE STRUCTURE & DESIGN:
Heavy-duty hydraulic cylinder plus precision ground hinge support
and guide the rugged saw frame through the entire cutting cycle.
Special wear resistant DU bushing is used to ensure durability
and long use life.
Cast iron quick set up vise features straight and miter cuts from
90 to 45 degrees. It enables miter cutting at desired angles
via the large easy-to-read mitering scale.
Large rugged base provides support for the heavy cast, and it comes
with built-in coolant & hydraulic systems to offer both sound
stability & all-in-one convenience.
BLADE DRIVE:
A 2 HP motor, heavy-duty reducer, and varaible step drive assembly
with excellent mechanical design feature the essentials for
production cutting.
The 4-speed transmission is equipped with the best worm gear speed
reducer. The worm shaft is hardened and ground. Together, they
provide quiet, powerful, and trouble-free drive.
BLADE GUIDANCE AND LUBRICATION SYSTEMS:
Carbide blade guides with roller bearings pre-align the blade before
entering carbide blade guides. This feature reduces wear on blade
guides and blade, thus enhancing blade life.
The rigid guide arms are mounted on an extra wide precision ground
dovetail slide more solid and supportive surface. The rigid design
owes to use of superior cast-iron which greatly reduces vibration
and achives better cutting result.
Two additional guides located on a central axis support the blade from
the top, giving it extra penetrating force. The carbide guides are
relieved to allow coolant flow to lubricate and cool the blade.
Intergral coolant system.
Blade brush to remove chips from blade gullet.
CONTROL & AUTOMATION:
Down feed & cutting pressure control. The feed rate may be adjusted by
setting the dial between 0 and 10 via the hydraulic down feed valve.
The vast range of adjustment allows proper setting which results in
longer blade life, shorter cutting times, and better finishes.
The control panel is clearly arranged and centrally located on top of
saw head at chest level.
MATERIAL CLAMPING & FEEDING:
Cast iron vises.
Secure clamping via a dependable manual lead screw system with
anti-slip hand wheel.
SAFETY:
Conduits protect all exposed electric wiring and hydraulic circuits.
Alert orange for blade guards and access doors.
STANDARD ACCESSORIES:
Easy blade change with front access at waist level,
Adjustable material stop, Bi-metal saw blade, Operations & parts manual
SPECIFICATIONS:
CAPACITIES:
Cutting--round--90 degrees 10"
--45 degrees 9"
