In-bound freight from factory. . . . . . . . . . . . . . . . . . 250.00

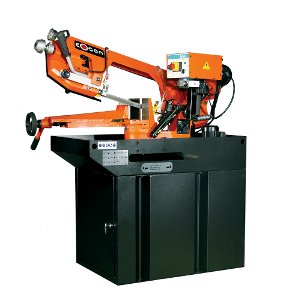

STANDARD FEATURES & ACCESSORIES:
MACHINE STRUCTURE & DESIGN:
Hydraulic cylinder plus precision ground hinge support
and guide the rugged saw frame through the entire cutting cycle.
Swivel frame design utilizing heavy-duty cast iron swivel center
features straight and miter cuts 90 to 30 degrees (forward) with
quick setting abd precise positioning. It enables smooth turing
of the saw frame for each angle viable via easy-to-read scale.
Large rugged base provides support for the heavy cast, and it comes
with built-in coolant system for all-in-one convenience.
A 1.5 HP motor, heavy-duty direct drive reducer with inverter
varaible steed drive allows the operator to select the best
speed in the range for the material being cut.
The gearbox is a direct drive type. THis drive will give the best
horse power transfer of any similar machine. This should provide
a quiet, powerful and trouble free drive.
BLADE GUIDANCE AND LUBRICATION SYSTEMS:
Carbide blade guides with roller bearings pre-align the blade before
entering carbide blade guides. This feature reduces wear on blade
guides and blade, thus enhancing blade life.
The rigid guide arms are mounted off of the cast saw frame for more
solid and supportive surface. The rigid design owes to use of superior
cast-iron which greatly reduces vibration and achives better cutting
Two additional guides located on a central axis support the blade from
the top, giving it extra penetrating force. The carbide guides are
relieved to allow coolant flow to lubricate and cool the blade.
Blade tensioning system fitted with indicator gage to insure constant
abd accurate tension.
Intergral coolant system.
Blade brush to remove chips from blade gullet.
CONTROL & AUTOMATION:
Down feed rate control with on/off valve. The feed rate may be adjusted by
setting the dial between 0 and 10 via the hydraulic down feed valve.
The vast range of adjustment allows proper setting which results in
longer blade life, shorter cutting times, and better finishes.
The control panel is clearly arranged and centrally located on top of
saw head at chest level.
MATERIAL CLAMPING & FEEDING:
Quick clamp/release vise equipped with short range sliding device over
a reliable lead screw system with anti-slip hand wheel.
Secure clamping via a dependable and strong cast iron vise.
Conduits protect all exposed electric wiring and hydraulic circuits.
Easy t oreach control panel with prominent E-stop and indicator lights
clearly displays the machine status for power on, blade runnning
and coolant running.
Blade door switch prevents accidental start of the machine when it's open.
Easy blade change with front access at waist level,
Adjustable material stop, Bi-metal saw blade, Operations & parts manual
Cutting--round--90 degrees 8.750" (225mm)
--45 degrees 5.750" (145mm)
--30 degrees 3.50" (90mm
