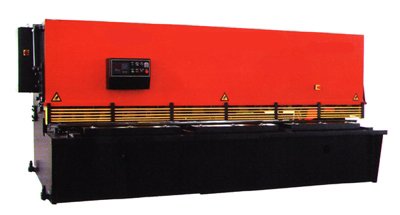

1/4" x 13'3", ACCU-MAQ, #13-250,
Location:
Hialeah, FL
Manufacturer:
Accumaq

Specifications

Condition:
used
Stock number:
5945
Division:
Metalworking
Inland freight to hialeah, fl:
2,000.00

Description

OPTIONS:
ESTUM model E20 programmable back guage, factory installed. . . . . $ 5,000.00
Inland freight to Hialeah, Fl . . . . . . . . . . . . . . . . . . . 2,000.00
SPECIFICATIONS:
Maximum cutting length 160" (4000mm)
Maximum shearing capacity, mild steel 1/4" (6mm)
Throat depth 5.7" (145mm)
Number of strokes per minute 10
Backguage length 34" (850mm)
Blade rake 1 degree 30 minutes
Main motor power 10 HP (7.5 KW)
Electrics 230/3/60
Dimensions (L x W x H) 183" x 73" x 67"
(4650mm x 1850mm x 1700mm)
Net weight 18,040 lbs (8200 kg)
STANDARD FEATURES & ACCESSORIES:
Front operated power back gauge with 36" travel and electronic
digital readout with fine adjustment
Foot pedal with emergency stop
Squaring arm, Front arm supports
Seals manufactured by Valqua (Japan) and Fietz (Germany)
Most electrical parts are manufactured by Schneider and/or Omron
Nitrogen filled counter balance accumulators
Gap adjustment with indicator, Shadow light
Single or continuous operation, Cycle counter
Machine has safety light curtain in rear, behind backgauge
