Top Seller

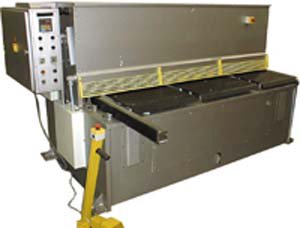

3/16" x 120", PRIMELINE, No.
Location:
Hialeah, FL
Manufacturer:
Primeline

Specifications

Condition:
used
Stock number:
5049
Division:
Metalworking

Description

FEATURES:
Swing-beam construction
All steel frame, featuring welded construction of the main frame
and blade beam, and with overall low profile
Low rake angle of upper blade
Ball transfers in table fillers
Low voltage controls
SPECIFICATIONS:
Overall cutting length 123"
Maximum capacity--mild steel 3/16"
--stainless 10 ga.
--aluminum 1/4"
Number of strokes per minute 38
Backguage length 24"
Main motor power 14 HP
Electrics 220/440/3/60
Net weight, approx. 11,800 lbs
EQUIPPED WITH
The complete hydraulic system
Go-to power front-operated back gauge with electronic digital
readoutand push button controls
Light beam shearing gauge, Finger guard, Two front support arms
Rapid, single-point, blade-gap adjustment device
40" left-hand squaring arm with scale in inches
Electrical foot switch on a trailing lead
