Top Seller

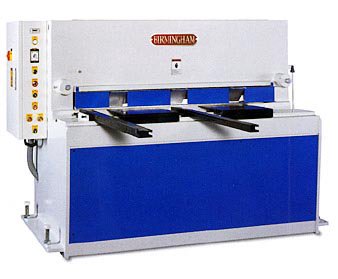

10 Ga. x 48", BIRMINGHAM,
Location:
Hialeah, FL
Manufacturer:
Birmingham presses

Specifications

Condition:
used
Stock number:
4054
Division:
Metalworking
Inland freight:
$ 750.00

Description

SPECIFICATIONS:
Maximum cutting length 48"
Maximum thickness--mild steel 10 gauge
Maximum thickness--stainless steel 13 gauge
Stokes per minute 44-55
Hold-downs--number 8
--pressure 2.5 tons
Back gauge range 24"
Front gauge range 40"
Top blade rake angle--adjustable 1/2 to 2 degrees
Main motor 7.5 HP
Electrics 230/3/60
Shipping weight 4,000 lbs.
Dimensions (L x W x H) 91" x 48" x 63"
FEATURES:
Hydraulic adjustable rake angle
Adjustable cutting length and stroke
Hydraulic pressure hold-downs
Choice of jog, single or continuous cutting mode
Worktable equipped with transfer balls
Equipped with remote foot pedal
STANDARD ACCESSORIES:
24" manual back gauge with dual scales and crank wheel
Two 40" front support arms with front setters
One 40" squaring arm with dual scale
Full length finger guard and ahsdow line lighting
HCHC blades--two edge top blade and four edge bottom blade
Inland freight . . . . . . . . . . . . . . . $ 750.00
