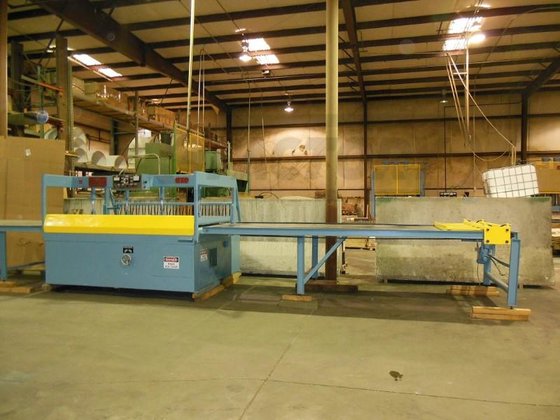

1987 L & L GA-100 HIGH FREQUENCY EDGE GLUER [RF-010514] in United States
- United States
- $56,800 USD
- L & L
54" x 106" Platen size & 6-1/2" thickness cap., feed through design, built-in 20 kW frequency generator, solid-state unit; capable of curing approx. 2,000 sq. in. of glue line/Min.
-- Equipped with: hydraulic side pressure cylinders; air operated top platen with pneumatic cylinders.
-- Complete with: 5 HP Hydraulic pump assembly with reservoir and 10 GPM pump; (18) 7â€� X 2-1/2" hydraulic edge cylinders, (4) 14â€� X 2-1/2â€� pneumatic cylinders for automatic up/down of top platen
-- 52" x 110" Layup area with powered chain drive pusher bar for automatic loading of the Press; 52 x 96" outfeed table.
-- Reconditioning includes new aluminum bed and Lexan cover, new UHMW frame to support aluminum bed, all hydraulic cylinders re-built, Hi Freq functions checked by RF technician, etc..Price includes a reconditioned 20â€� wide glue spreader with 115â€� infeed and 100â€� outfeed chain. Powered with a 1 HP motor
