2014 Förderband Länge 6 Meter

2014 Förderband Länge 6 Meter AP_FÖRDERBÄNDER Width 50 in Germany

Location:
Germany
Price:
$6,823 (USD)
Manufacturer:
Edge
Model:
AP_FÖRDERBÄNDER

Specifications

Condition:
new
Year:
2014
Color:
orange (primed and varnished in color RAL 2003)
Belt width:
500 mm
Connection:
plug with switch, 16 amp
Center distance:
5.700 mm, drum diameter 168 mm Ø
Exterior length:
6000 mm
Feed funnel (demountable):
150 mm high, 1000 mm long, with end limit
Loading height (feet removed):
Top edge without funnel is approx. 500 mm

Description

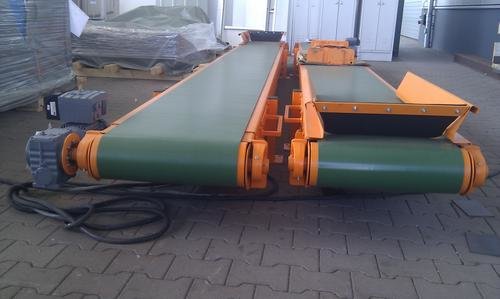

Conveyor belt length 6 meters, width 500 mm, sliding belt
1 piece new, unused, VB 5.000, - €
A second copy is available
Color: orange (primed and varnished in color RAL 2003)
Center distance: 5.700 mm, drum diameter 168 mm Ø
Loading height (feet removed): Top edge without funnel is approx. 500 mm
Feed funnel (demountable): 150 mm high, 1000 mm long, with end limit
Exterior length: 6000 mm
Belt width: 500 mm
Belt PVC sliding belt smooth design approx. 3mm thick
Belt speed adjustable from approx. 0.2 m / sec to approx. 1.0 m / sec
SEW slip-on geared motor 1.1 kw with frequency converter / potentiometer on the motor; 400 volts 50 heart
Motor protection switch  Emergency stop
Connection: plug with switch, 16 amp
Four demountable, freely adjustable double supports with base plate, on the side of the frame screwed
 Adjust the upper edge conveyor belt 1000 mm + - 200 mm at the desired height (for example as a sorting belt)
Resale 2nd hand, therefore functional check is required upon acceptance
No long-term guarantee
Availability: 1 piece (s), new, ready for immediate delivery, price VB netto 5.000, - €
A second identical band is available, used, with minor defects. Price VB
Delivery terms
- free self-collection In 85461 Grünbach
- Delivery in Germany for a flat rate 430, - €
