Top Seller

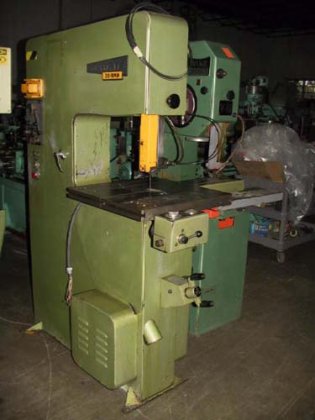

20" x 10", STARTRITE, No.
Location:
Hialeah, FL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
5023
Division:
Construction

Description

Model number 20RWH
Year of Manufacture 1984
SPECIFICATIONS:
Throat 20" (508mm)
Workpiece height--max 10" (254mm)
Blade speed Inf. variable
Blade speed range 60 to 3600 SFPM
Maximum usable blade width 1/16" thru 3/4"
Blade length 130"
Band wheels--number 3
--diameter 14" x 1-1/2"
Wheel tires bonded rubber
Blade guides--type solid carbide insert
Table type hydraulic
Table size 20-1/2" x 20-1/2"
Table tilt--left 15 deg
--right 45 deg
--front or back 5 deg
Table stroke 8-1/2"
Table feed rate 0 to 35"/min
Table force 0 to 210 lbs
Table height 43-1/2"
Electrics 220/440/3/60
Drive motor 1-1/2 HP
Gear transimission 2 speed, totally enclosed
Floor area 55" x 25" x 72"h
Machine weight 825 lbs
EQUIPPED WITH:
Built-in blade welder, grinder & shear 1" capacity
