800 HP, Cleaver-Brooks LE, 250
Location:
Fremont, CA
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
597
Width:
9' 5"
#2 oil:
240 GPH
Height:
11' 2"
Length:
25' 3"
Feedwater:
2" NPT
Main steam:
8"-300# RF FLG
Flue outlet:
27" OD FLG
Natural gas:
33,480 SCFH @ 10-25 psig
Natural gas 2:
4"-150# FF FLG
Bottom blowdown:
2" NPT
Shipping weight:
60,500 lbs
Operating weight:
83,500 lbs
Co (corr. to 3%2):
50 ppm
Nox (corr. to 3%2):
30 ppm
Continuous blowdown:
¾" NPT
#2 oil supply / return:
1¼" NPT / ¾" NPT
Subcategory:
Electrical power

Description

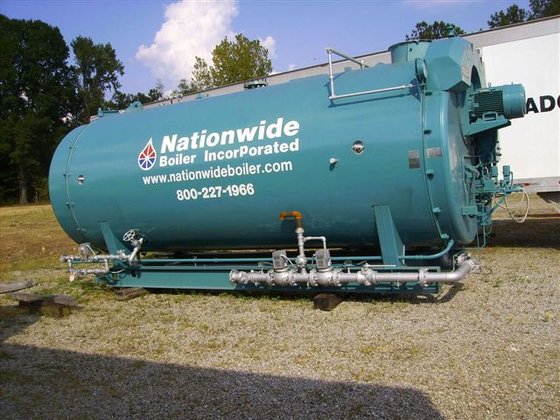

Nationwide Boiler’s low NOx, 800 hp (27,600 lbs/hr) skid-mounted Cleaver-Brooks firetube boiler, is designed at 250 psig pressure, firing natural gas or #2 oil, manufactured in 2005. It is fully
piped and wired and includes the following components:
Low NOx Burner
Forced Draft Fan, Motor & Starter
Complete Gas Train
Oil System with Pump & Air Compressor
Steam Pressure Gauge
Dual Low Water Cutoffs
Water Column & Site Glass
Two (2) Safety Valves Set at 250 psig
Feedwater Stop and Check Valves
Bottom & Control Blowdown Valves
Continuous Blowdown Metering Valve
Control Panel w/ Combustion Control
High/low Water and Flame Failure Alarm
Pilot System w/ Electric Ignition
Main Steam Non-return Valve (loose)
Stack (loose)
NEMA 3 Disconnect (unfused/mounted)
Meets FM / IRI / NFPA 85
Seismic Zone 3 & 4 Design
EconoStak Economizer (optional)
Low NOx CataStak™ SCR System (optional)
Operating Manuals
Fuel Consumption:
Natural Gas: 33,480 SCFH @ 10-25 psig
#2 Oil: 240 GPH
Connection Sizes:
Main Steam: 8"-300# RF FLG
Natural Gas: 4"-150# FF FLG
#2 Oil Supply / Return: 1¼" NPT / ¾" NPT
Feedwater: 2" NPT
Bottom Blowdown: 2" NPT
Continuous Blowdown: ¾" NPT
Flue Outlet: 27" OD FLG
Electrical Power Service Requirements:
480 VAC, 3 ph, 60 hz, 100 amp
Boiler Dimensions & Weights:
Length: 25' 3"
Width: 9' 5"
Height: 11' 2"
Shipping Weight: 60,500 lbs
Operating Weight: 83,500 lbs
Emissions Data (natural gas):
NOx (corr. to 3%2): 30 ppm
CO (corr. to 3%2): 50 ppm
