70000 PPH Nebraska, 300 PSI,
Location:
Fremont, CA
Manufacturer:
PPM boilers

Specifications

Condition:
used
Stock number:
485
#2 oil:
617 GPH
Division:
Electrical Power
Feedwater:
2½"-300# FLG
Main steam:
8"-300# FLG
Natural gas:
92,700 SCFH @ 10 psi regulated
Chemical feed:
1" NPT
Natural gas 2:
4"-150# FF FLG
Instrument air:
¼" NPT
Bottom blowdown:
1½"-300# FLG
Nox (corr. to 3:
30 ppm
Shipping weight:
85,000 lbs
Operating weight:
102,600 lbs
Water column drain:
¾" NPT
Continuous blowdown:
1" NPT
Atomizing air / steam:
1" NPT / 1¼" NPT
#2 oil supply / return:
1½" NPT / ¾" NPT
Length / width / height:
52' 0" / 10' 7" / 14' 0"
Subcategory:
Boilers, watertube

Description

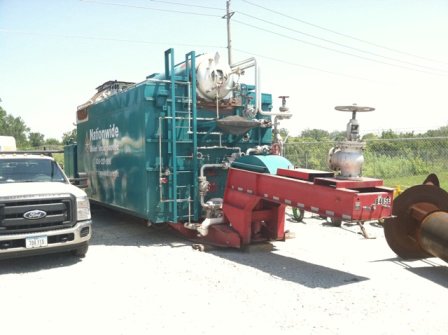

Nationwide Boiler’s low NOx 70,000 pph, 300 psig design, saturated steam, trailer-mounted packa
e watertube boiler is set to burn natural gas or #2 oil. It is fully piped and wired and includes th
following components:
Low NOx Burner
Burner Management System
Single-point Positioning Combustion Controls
Forced Draft Fan, Motor & Starter
Complete Fuel Train & Pilot Ignition System
#2 Fuel Oil Pump
Water Column & Site Glass
Steam Pressure Gauge
Low-water Cutoffs
Safety Valves
Feedwater Stop & Check Valves
Blowdown Valves
Continuous Blowdown Metering Valve
Chemical Feed Valve
Single Element Feedwater Regulator with Pre-piped
3-Valve Bypass
Steam Non-return Valve
Stack (loose)
NEMA 4 Electrical Enclosures
EconoStak Economizer (optional)
Low NOx CataStak™ SCR System (optional)
Weatherproofed (except for freezing)
Meets FM, NFPA 85 & IRI Insurance Standards
Operating Manuals
Fuel Consumption:
Natural Gas:92,700 SCFH @ 10 psi regulated
#2 Oil:617 GPH
Connection Sizes:
Main Steam:8"-300# FLG
Natural Gas: 4"-150# FF FLG
#2 Oil Supply / Return:1½" NPT / ¾" NPT
Feedwater:2½"-300# FLG
Bottom Blowdown:1½"-300# FLG
Continuous Blowdown:1" NPT
Chemical Feed:1" NPT
Atomizing Air / Steam: 1" NPT / 1¼" NPT
Instrument Air:¼" NPT
Water Column Drain:¾" NPT
Electrical Power Service Requirements:
480 VAC, 3 ph, 60 hz, 200 amp
Dimensions & Weights:
Length / Width / Height:52' 0" / 10' 7" / 14' 0"
Shipping Weight:85,000 lbs
Operating Weight:102,600 lbs
Emissions Data (natural gas):
NOx (corr. to 3:30 ppm
